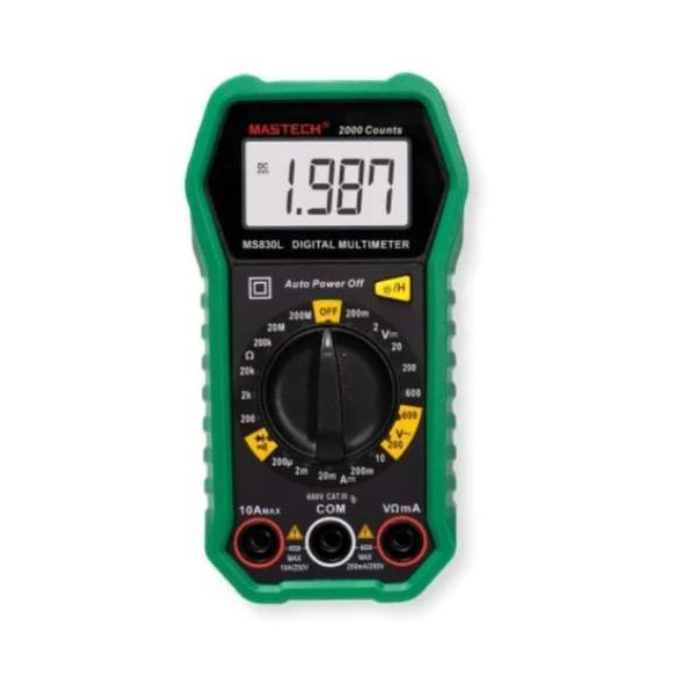

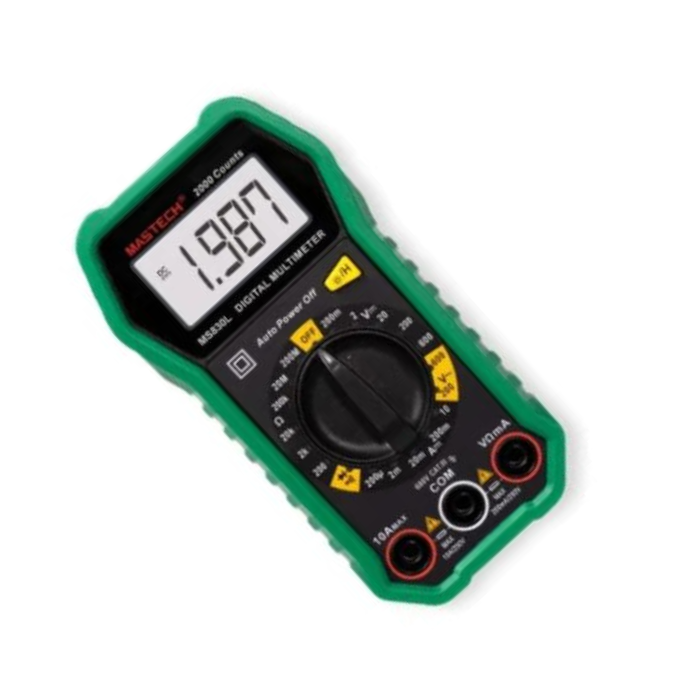

Original Mastech MS830L Digital Pocket Multimeter with Probes

Original Mstech MS830L Digital Pocket Multimeter with Probes

It is a handheld Digital Multimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode, and Transistor with battery operation. The Mastech MS830L Digital Multimeter has a Blue Backlight LCD with 1999 counts and 2-3/sec updates Measuring method. It features a dual-slope integration A/D Converter.

Safety Measures for MS830L:

Failing these Precautions May Lead to Instrument Damage

• Always make sure the Test Probes are fitted in the correct sockets (Especially while measuring AC Voltage )
• Please choose the correct measuring option before you connect the probe. (As a thumb rule always choose the greater value and decrease if required)
• While measuring current, make sure to put the Red Probe in the “10A” socket and the measuring connection should be in “Series”
• While measuring all other parameters other than Current (Ampere), the measuring connection should be in “Parallel”
• If by mistake a wrong connection or option is selected and the measurement is initiated, the instrument will Blink / Beep. Remove the connections immediately to restrict the damage to a minimum
• The instrument can only be used in conjunction with the probe for compliance with safety standards. If the probe needs replacing due to damage, the replacement must be of the same type or the same electrical specifications
• Do not exceed the input limits specified for each range
• When the instrument is measuring, do not touch the input terminal, not in use
• When a measurement range is uncertain, turn the function/range switch to the maximum range position

Features:

• Measurement Capabilities: Measures DC and AC voltage, DC current, resistance, diode, and transistor.

• Display: Blue backlight LCD display with 1999 counts, updating 2-3 times per second.

• Power Source: Operates on a 9V battery (NEDA 1604 or 6F22 type).

• Data Hold Function: Allows you to freeze the displayed reading for easy recording.

• Continuity Buzzer: Audible alert for continuity testing.

• Low Battery Indicator: Displays a warning when the battery is low.

• Compact Size: Pocket-sized design for portability and convenience.

Applications:

• Electrical Troubleshooting: Used by electricians and technicians to diagnose electrical issues in circuits and devices.

• DIY Electronics Projects: Ideal for hobbyists working on various electronics projects, including building and repairing gadgets.

• Automotive Testing: Useful for testing automotive electrical systems, including battery voltage, alternator output, and wiring continuity.

• Home Appliance Repair: Helps in diagnosing and repairing household appliances by measuring voltage, current, and resistance.

• Educational Purposes: Used in educational settings to teach students about electrical measurements and circuit analysis.

• Field Service: Convenient for field service engineers who need a portable tool for on-site electrical testing.

Measurement:

• DC Voltage up to 600V (In 5 Ranges)
• AC Voltage up to 600V (In 2 Ranges)
• DC Current up to 10A (In 5 Ranges)
• Resistance up to 2 M.OHMS (In 5 Ranges)

Package Includes:

1 x MS830L Digital Multimeter with Probes

Specifications:
