1 year ago
Good product at good price
This LCD board was nicely packaged with bubble wrap to protect it. It works perfectly, and I've been using it for my robotics projects.
Robocraze BEST PRICE GUARANTEED
Original JHD 16x2 Character LCD Display- Blue
Original JHD 16x2 Character LCD Display- Blue
7
Regular price
Rs. 135
Regular price
Rs. 249
Sale price
Rs. 135
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 12 people are actively viewing.
Same Day Shipping
If Ordered within 12 Hours and 49 Minutes
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is Original JHD 16x2 Character LCD Display- Blue
- This display has 16 characters wide, 2 rows
- This LCD display shows white text on the yellow background
- Single LED backlight included can be dimmed easily with a resistor or PWM.
- This can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)

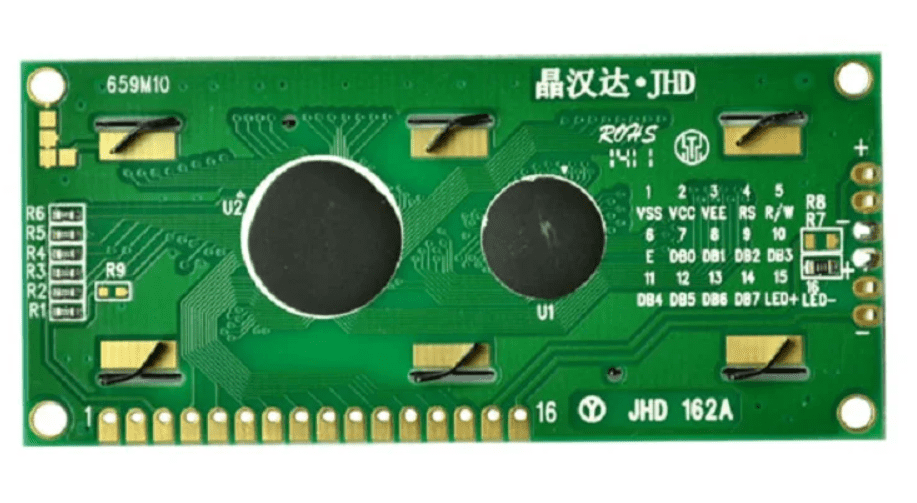

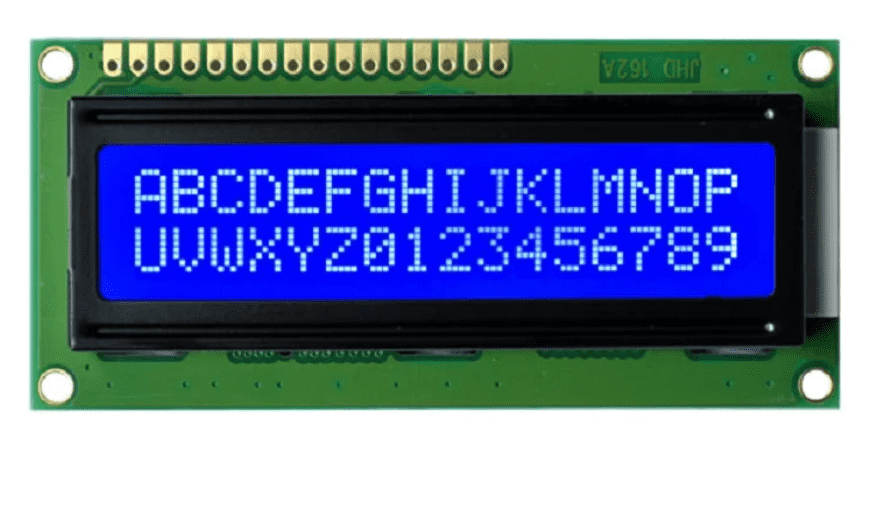

Original JHD 16×2 Character LCD Display- Blue
This is a popular 16×2 LCD Display Blue Backlight . It is based on the SPLC780D display controller which makes it is easy to interface this LCD most micro-controllers. Its extreme popularity ensures that no matter which micro controller platform you are using, you will definitely find ready libraries to use this 16×2 LCD.
It works of 5v and has a blue backlight which can be switched on and off as desired.
This is a genuine JHD Display, and an excellent blue backlit LCD display. It is ideal for Arduino-based projects. This 16×2 LCD Display with Blue Backlight is very simple to interface with Arduino or Other Microcontrollers. The display is 16 character by 2 line with very clear and high contrast white text against a blue background/backlight. The values displayed on this LCD display can be simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles performed by the Arduino.
Features:
- 16 characters wide, 2 rows
- Blue Backlight
- SPLC780D Equivalent LCD Controller/driver Built-In
- Works with almost any Microcontroller
- Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
Package Include:
- 1 x Original JHD 16x2 Character LCD Display- Blue
Specifications:
|
Model |
JHD659 B/W |
|
Display |
16×2 character |
|
Outline |
80.0×36.0x14.5 |
|
VA |
64.5×14.5 |
|
Controller |
SPLC780D |
|
Character |
2.95×4.35 |
|
Driver |
1/16 |
|
Backlight Colour |
Blue |
|
Input Voltage |
5 |
|
Weight(gm) |
30 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
16x2 LCD (Blue) with I2C Interface
6
Regular price
Rs. 269
Regular price
Rs. 345
Sale price
Rs. 269
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
16x4 LCD Display With Green Backlight
8
Regular price
Rs. 359
Regular price
Rs. 475
Sale price
Rs. 359
Unit price
per
Incl. GST (No Hidden Charges)
Sale
20x4 LCD Display Module (Blue)
Regular price
Rs. 279
Regular price
Rs. 480
Sale price
Rs. 279
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is 16x2 LCD display module for Arduino?
- The 16x2 LCD Display is a simple and cost-effective LCD display with 16 character by 2 line with very clear and high contrast. This 16x2 LCD is extremely simple to connect to an Arduino or other microcontrollers. The values displayed on the 16x2 LCD can be simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles performed by the Arduino.
2. How many data lines are needed for 16x2 interface?
- The LCD 16x2 is a 16-pin device with eight data pins (D0-D7) and three control pins (RS, RW, EN). The remaining 5 pins are for the LCD's power supply and backlight. The control pins allow us to set the LCD to command or data mode. They also assist in configuring read mode or write mode, as well as when to read or write.
