Openpilot CC3D Flight Controller
This OpenPilot CC3D EVO Flight Controller Straight Pin card has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables. The 3-axis MEMs technology is used for both gyro and accelerometer.
The Openpilot CC3D flight controller is integrated with a powerful STM32 bit microprocessor that runs at 90MIPs with 128Kb flash and 20Kb RAM. This flight controller features a high-performance 3 axis accelerometer and MEM gyrometer. The camera stabilization system supports up to 3axis camera mounts with stabilization and manual control from any of configured receivers.

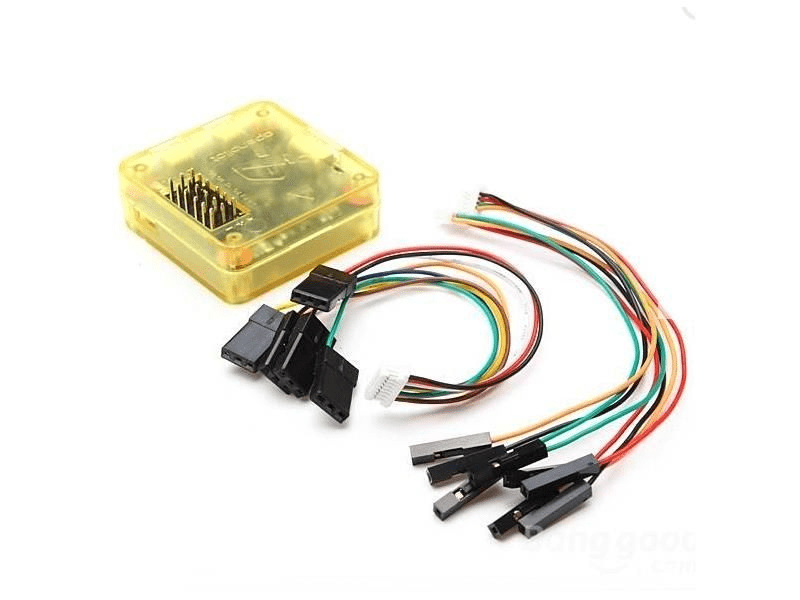

Package Includes:
- 1 x OpenPilot CC3D EVO Flight Controller
- 3 x connecting wires
- 1 x PC plastic shell
Features of OpenPilot CC3D EVO Flight Controller
| Microcontroller | STM 32 bit microcontroller |
| Futaba S-BUS hardware support | Yes |
| Spektrum satellite receiver support | Yes |
| Onboard memory | 4 Mbit |
| PWM outputs | 10 |
| Dimensions | 5 x 4 x 3cms |
| Weight | 25 grams |
