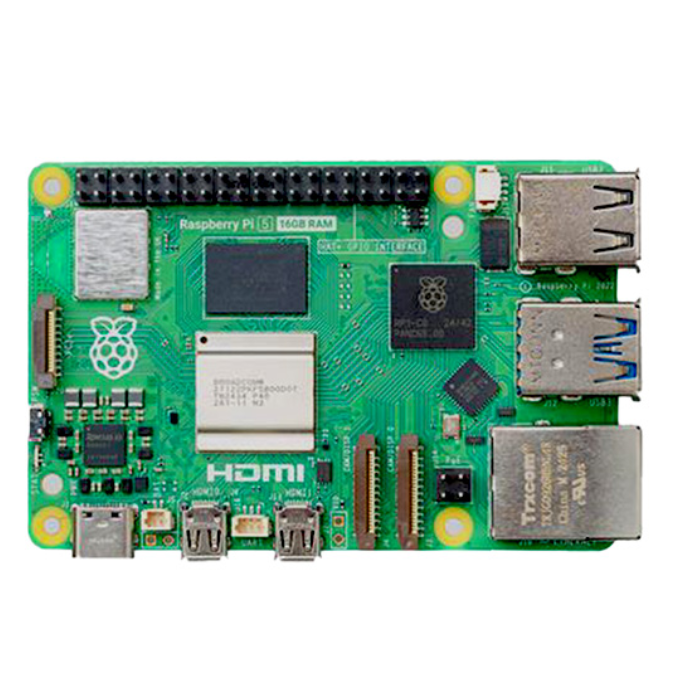

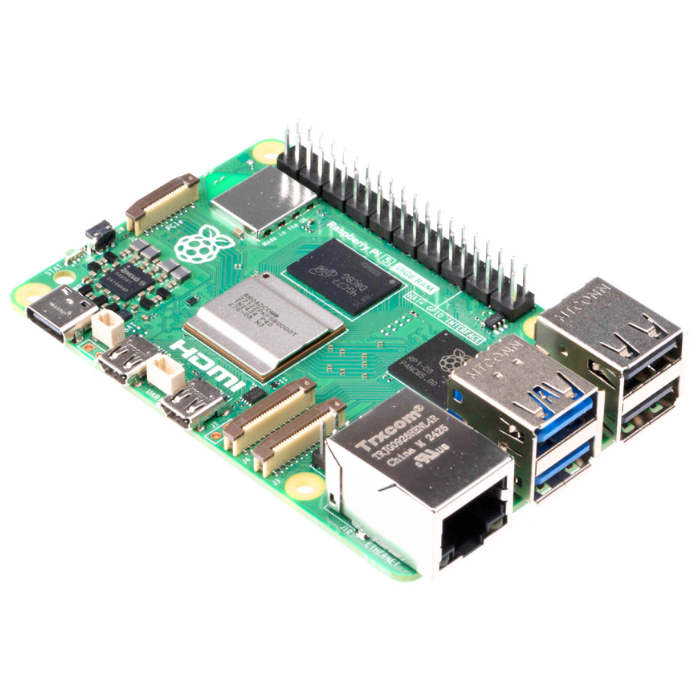

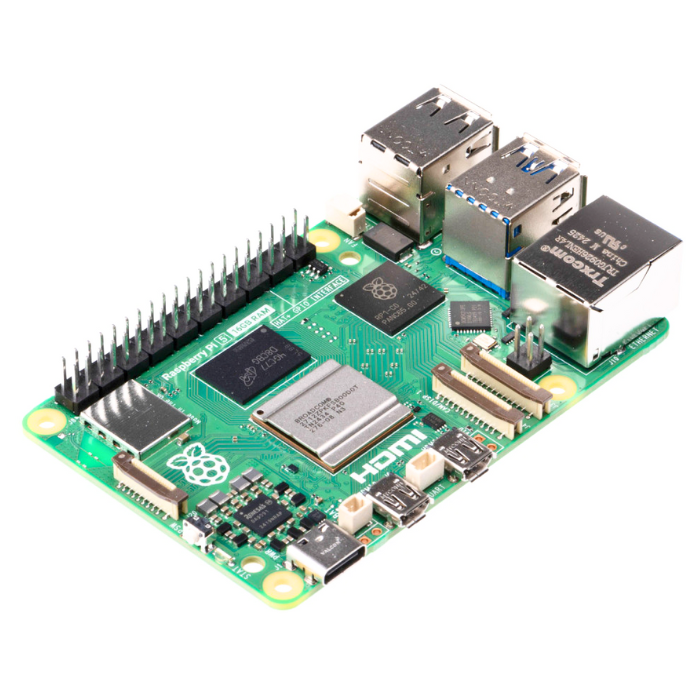

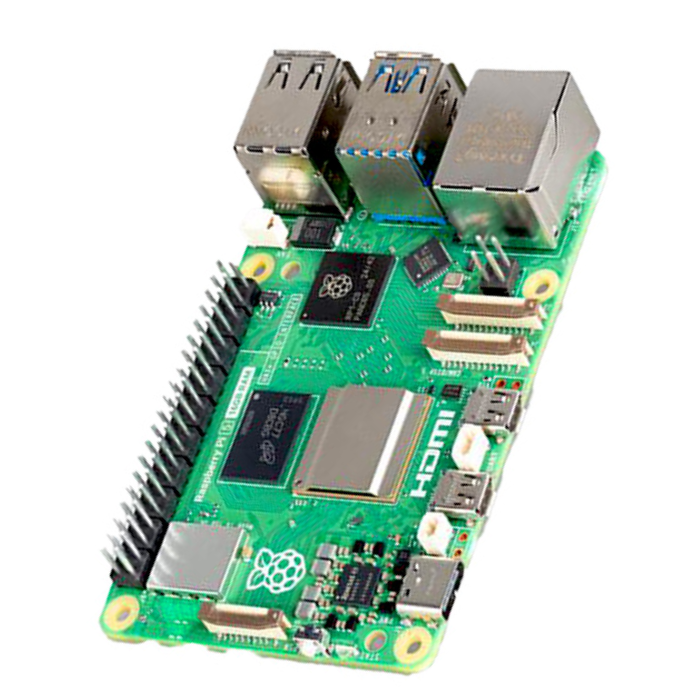

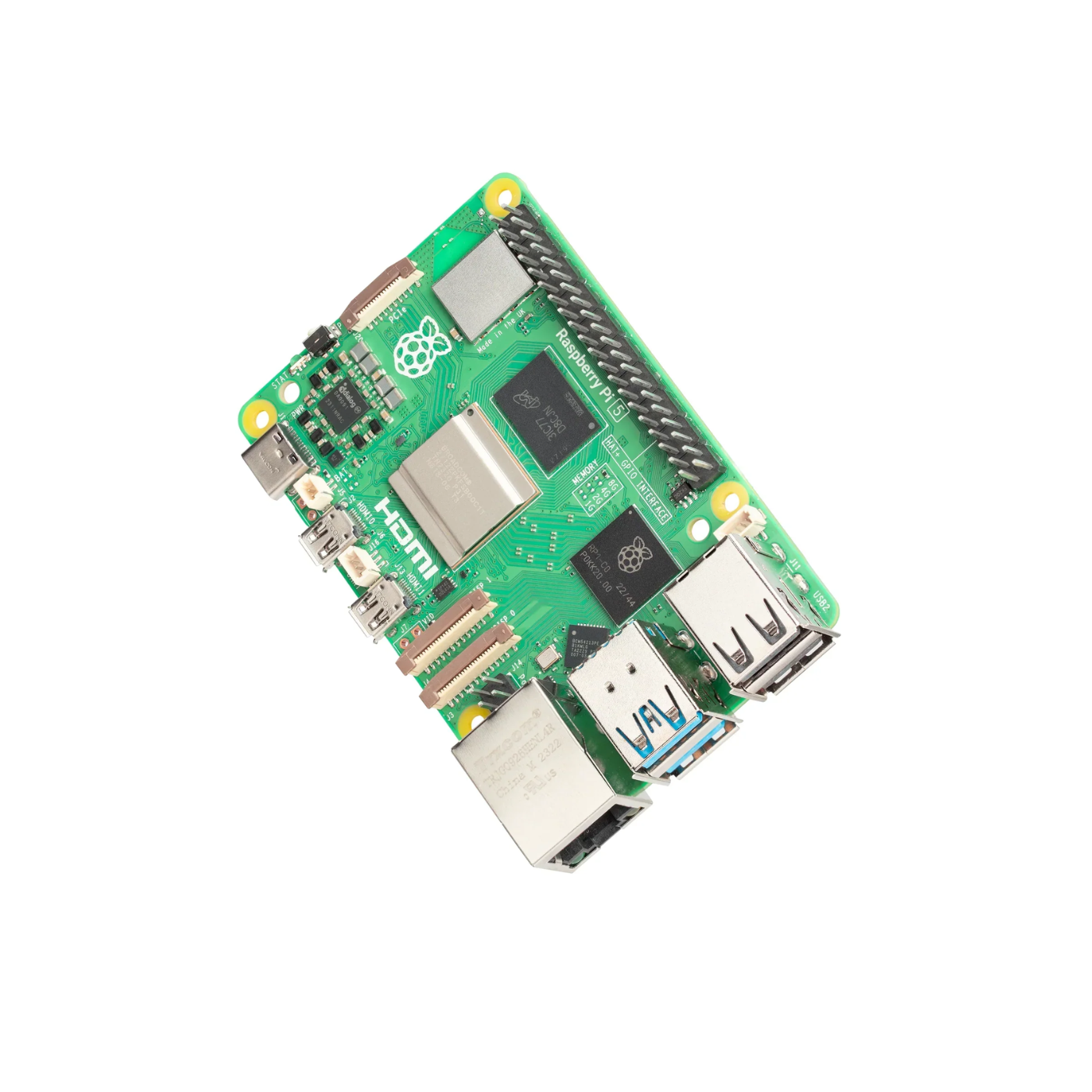

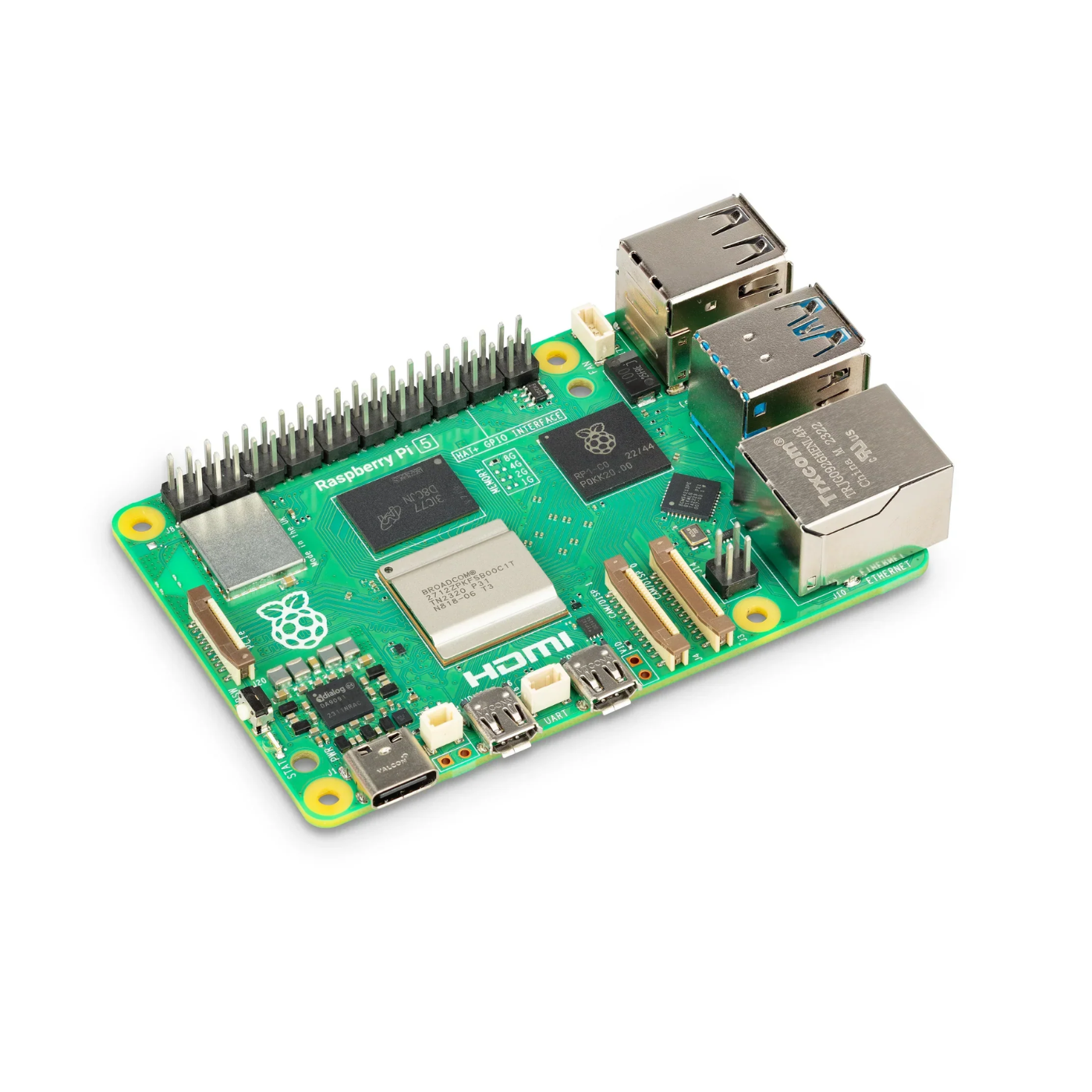

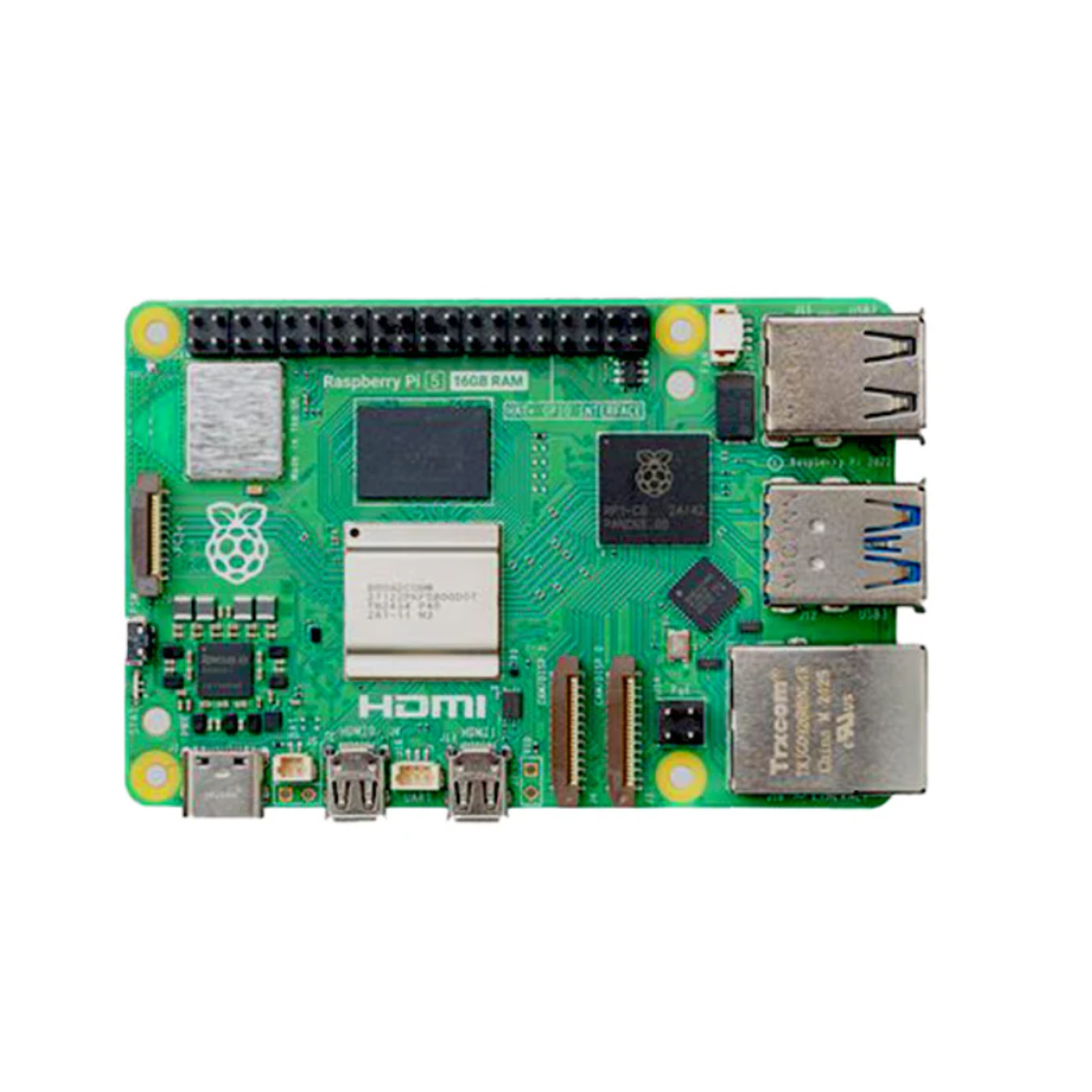

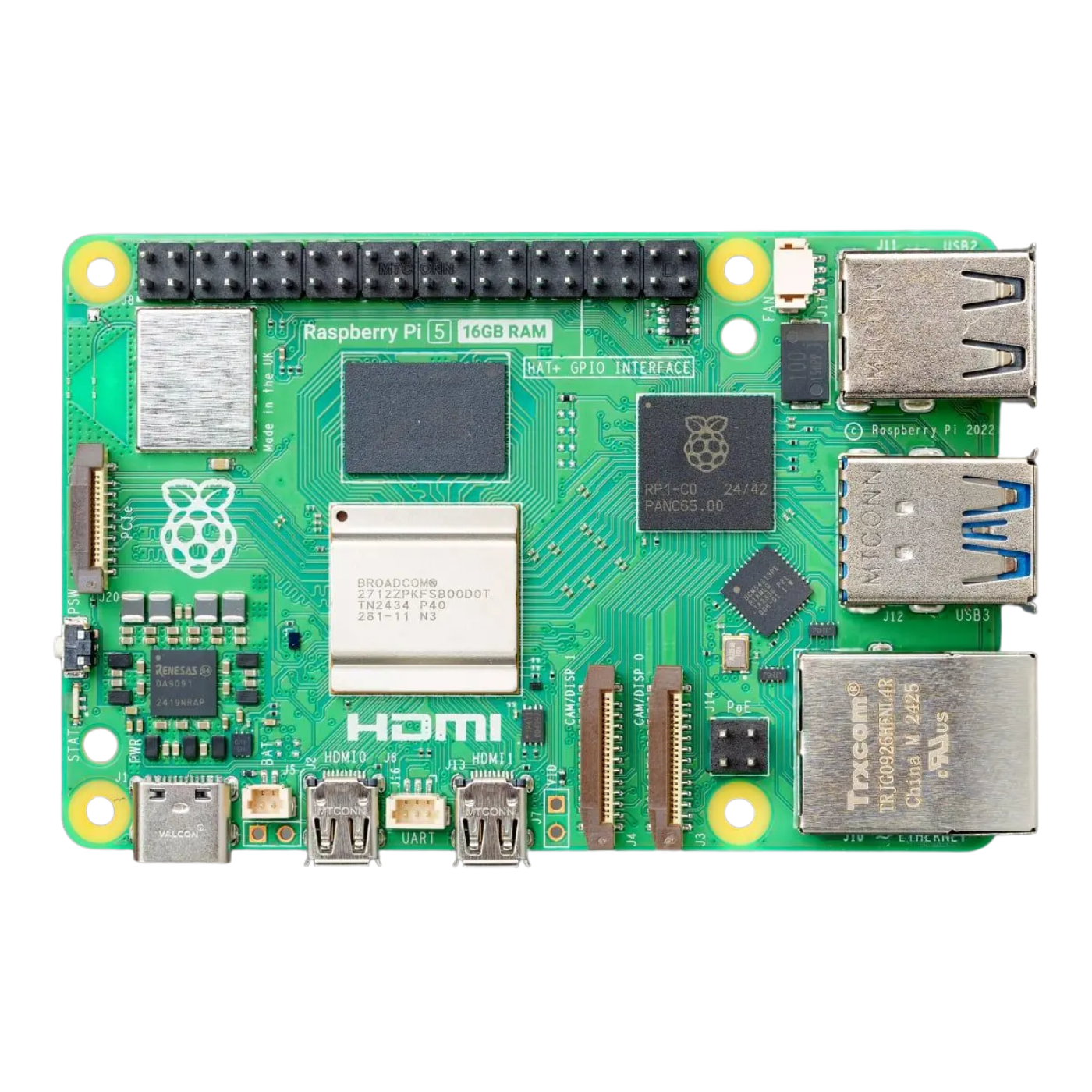

Official Raspberry Pi 5 Model 16GB RAM
Double your computing power with the new Raspberry Pi 5 16GB RAM variant! With expanded memory, this model handles resource-intensive tasks effortlessly - perfect for AI projects, data processing, and multimedia work.
The Raspberry Pi 5 16GB is identical to previous Pi 5 models, supporting the same accessories, cases, and overclocking options. The only difference is the increased RAM, giving you more flexibility for demanding applications.
Ideal for developers, hobbyists, and educators, this upgrade joins the 2GB, 4GB, and 8GB models, offering more power for your projects. Unlock new possibilities and take your computing to the next level with this 16GB Raspberry Pi 5 model!
Features
- VideoCore VII GPU with OpenGL ES 3.1 and Vulkan 1.2 support
- Dual 4Kp60 HDMI output with HDR support
- 4Kp60 HEVC decoder for high-quality video playback
- LPDDR4X-4267 SDRAM, available in 2GB, 4GB, 8GB, and 16GB options
- Dual-band 802.11ac Wi-Fi for fast wireless connectivity
- Bluetooth 5.0 & BLE for seamless device pairing
- microSD card slot with high-speed SDR104 mode support
- 2 × USB 3.0 ports with simultaneous 5Gbps transfer speed
- 2 × USB 2.0 ports for additional peripherals
- Gigabit Ethernet with PoE+ support (requires PoE+ HAT)
- Dual 4-lane MIPI transceivers for cameras and displays
- PCIe 2.0 x1 interface for high-speed peripherals (requires M.2 HAT or adapter)
- 5V/5A USB-C power input with Power Delivery support
- Raspberry Pi standard 40-pin header for GPIO expansion
- Real-time clock (RTC) powered by an external battery
- Dedicated power button for easy on/off control
Comparison Table: Raspberry Pi 5 16GB Vs 8Gb
| Feature |
Raspberry Pi 5 (16GB) |
Raspberry Pi 5 (8GB) |
| Processor |
Broadcom BCM2712 Quad-core Arm Cortex-A76 (2.4GHz) |
| GPU |
VideoCore VII (supports dual 4Kp60 HDMI output) |
| RAM |
16GB LPDDR4X-4267 SDRAM |
8GB LPDDR4X-4267 SDRAM |
| Storage |
MicroSD card slot (supports SDXC), PCIe 2.0 x1 via FFC connector |
| USB Ports |
2 × USB 3.0, 2 × USB 2.0 |
| Networking |
Gigabit Ethernet, Dual-band Wi-Fi 802.11ac, Bluetooth 5.0 |
| Display Support |
2 × micro-HDMI (up to 4K@60fps) |
| Camera Support |
2 × 4-lane MIPI CSI/DSI connectors |
| Power Input |
USB-C (5V / 5A recommended) |
| GPIO |
40-pin GPIO header (backward compatible) |
| Operating System Support |
Raspberry Pi OS, Ubuntu, and other Linux distributions |
| Performance Advantage |
Better suited for heavy multitasking, AI, and data-intensive workloads |
Ideal for general computing, IoT, and light robotics projects |
| Ideal Users |
Developers, researchers, and advanced makers |
Students, hobbyists, and entry-level users |
Performance Benchmarks & Real-World Speed
-
Faster Boot Time: Boots into Raspberry Pi OS in under 20 seconds, even with heavy startup scripts.
-
Enhanced Graphics Performance: Handles 4K dual-display output smoothly, ideal for media centers, AI visualization, and gaming projects.
-
16GB LPDDR4X RAM: Supports multitasking, containerized workloads, and large AI/ML models without lag.
-
Snappy Desktop Experience: Run Chromium, VS Code, and multiple applications simultaneously with minimal delay.
-
Benchmark Results:
- CPU Performance (Geekbench 6): ~2.9× faster than Raspberry Pi 4 (4GB model)
- GPU Performance (OpenGL ES): ~60 FPS in lightweight 3D tests
- Storage I/O (NVMe/SSD via PCIe): Over 700 MB/s read speeds with supported adapters
-
Optimized for AI & Edge Computing: Handles TensorFlow Lite, image recognition, and IoT gateway workloads efficiently.
-
Ideal For: AI projects, robotics, emulation, software testing, and high-performance DIY computing.
Package Includes:
1 x Raspberry Pi 5 Model 16GB RAM
Specifications
| Specification |
Details |
| Item Type |
Development Board |
| Model Type |
Pi 5 |
| Model |
Raspberry Pi 5 Model 16GB |
| Processor |
BCM2712 2.4GHz Quad-Core 64-bit Arm Cortex-A76 CPU |
| RAM Memory |
16GB LPDDR4X-4267 |
| Connectivity |
2 × USB 2.0 Ports, 2 × USB 3.0 Ports, Bluetooth 5.0 / BLE |
| GPIO |
Standard 40-pin GPIO Header |
| Video & Sound |
2 × micro HDMI (up to 4Kp60), 4-Pole Stereo Audio & Composite Video |
| On-Board Ports |
1 × DSI, 1 × Ethernet, 2 × Micro HDMI, 2 × USB 2.0, 2 × USB 3.0, 40-Pin GPIO, USB Type-C |
| MicroSD Card Slot |
Yes, Supports High-Speed SDR104 Mode |
| Operating Temperature |
-10°C to 60°C |
1. What are the key features of Raspberry Pi 5 16GB?

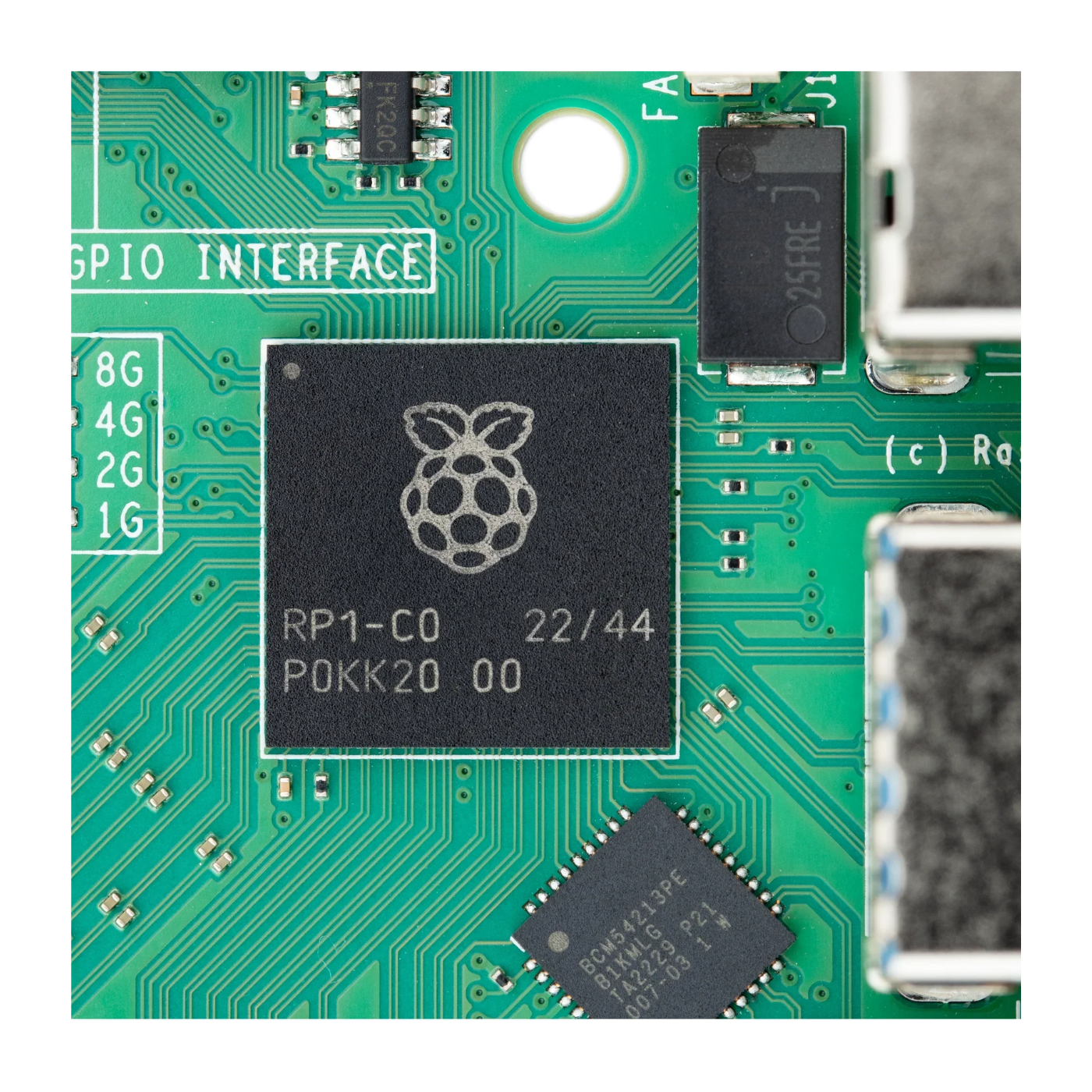

The Raspberry Pi 5 16GB is a high-performance single-board computer powered by a 2.4GHz quad-core ARM Cortex-A76 processor, offering up to 2–3x faster performance than its predecessor. Key features include PCIe 2.0 support, dual 4K display output (HDMI), a new southbridge (RP1) for faster I/O, USB 3.0 ports, and improved thermal management — making it the most advanced Raspberry Pi 5 board to date.
2. Can I run AI and machine learning projects on this model?
Yes, the Raspberry Pi 5 16GB is well-suited for AI and machine learning projects. With its powerful CPU, increased RAM, and GPU acceleration, it can efficiently handle frameworks like TensorFlow Lite, OpenCV, and Edge Impulse for edge AI applications. This makes it an excellent choice for developers, researchers, and educators exploring AI on Raspberry Pi.
3. Does it support dual 4K display output?
Yes, the Raspberry Pi 5 supports dual 4K 60Hz display output via its two micro-HDMI ports, allowing users to connect and multitask across multiple high-resolution screens. This feature is perfect for developers, multimedia creators, and those using the Raspberry Pi 5 for desktop computing.
4. What operating systems are compatible with Pi 5?
The Raspberry Pi 5 16GB supports a range of operating systems, including Raspberry Pi OS (Bookworm), Ubuntu, Debian, and specialized Linux distributions. It’s also compatible with third-party systems designed for IoT, AI, and robotics, giving users flexibility to choose the ideal environment for their projects.
5. Is this the most powerful Raspberry Pi available?
Yes, the Raspberry Pi 5 16GB is currently the most powerful Raspberry Pi board ever released. With its upgraded processor, faster memory, and enhanced GPU performance, it offers unmatched computing power for AI, robotics, IoT development, and high-end maker projects.
Warranty Coverage:
Raspberry Pi Original boards comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
Warranty Void If:
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
