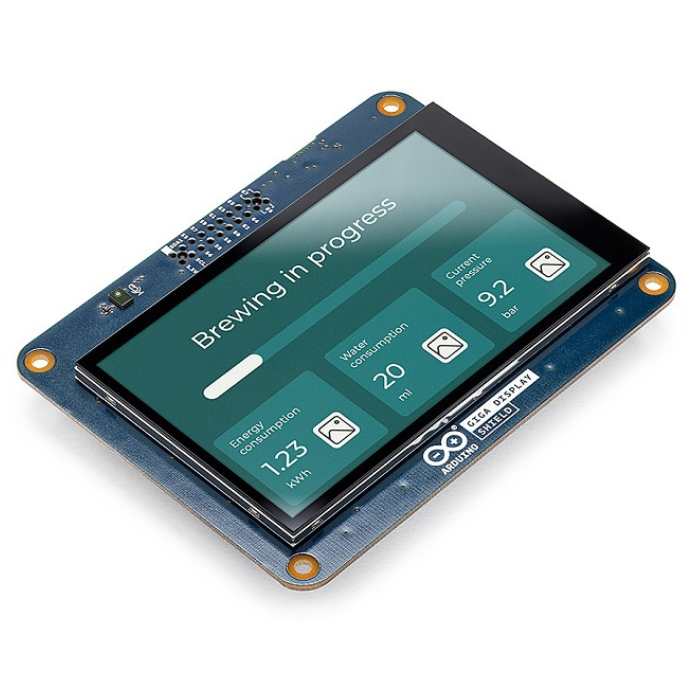

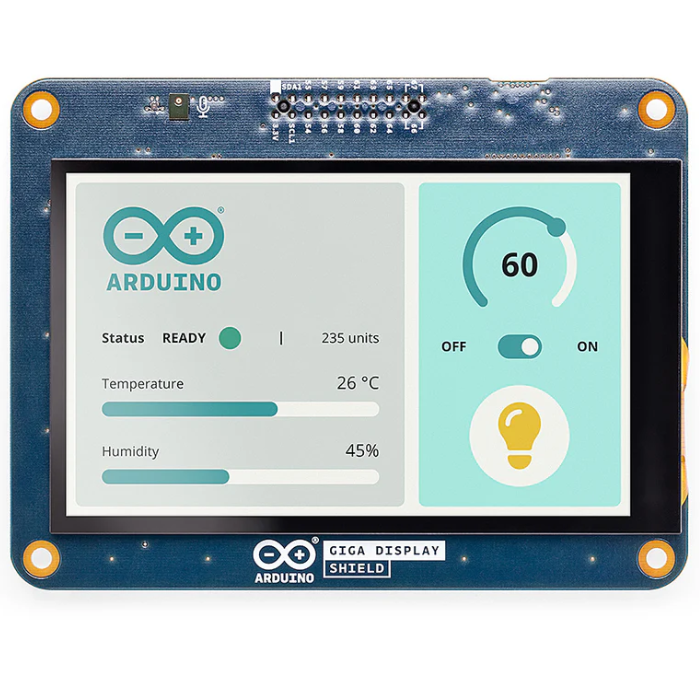

Official 3.97-inch Arduino GIGA Touchscreen Display Shield 480x800

The Official Arduino GIGA Display Shield is designed to seamlessly add a touchscreen display with orientation detection to your Arduino GIGA R1 WiFi board.

This Arduino display shield enables easy integration of an external touch display and provides several useful peripherals, making it an ideal solution for developing Human-Machine Interface (HMI) systems. With the included gyroscope, it offers automatic orientation detection, allowing visual elements to adjust accordingly.

This feature is particularly beneficial for rapid prototyping in interaction design, enabling you to explore new ways of communicating with technology, such as through social robots that react to sound.

Additionally, the built-in microphone enables voice assistant capabilities, paired with the powerful edge computing of the GIGA R1 WiFi for voice automation and visual feedback.

Features:

  • Display: 3.97-inch KD040WVFID026-01-C025A TFT display
  • Resolution: 480x800 pixels
  • Color Depth: 16.7 million colors for vibrant display
  • Pixel Size: 0.108 mm for crisp and clear visuals
  • Touch Sensor: Capacitive touch with 5-point multi-touch and gesture support
  • Backlight: Edge LED backlight for enhanced visibility
  • IMU (Inertial Measurement Unit): 16-bit BMI270 6-axis IMU for precise motion sensing
  • Accelerometer: 3-axis with selectable range (2g/4g/8g/16g) for motion detection
  • Gyroscope: 3-axis with adjustable range (125dps/250dps/500dps/1000dps/2000dps) for accurate orientation
  • RGB LED: SMLP34RGB2W3 RGB LED for customizable lighting effects
  • Acoustic Overload Point (AOP): 122.5 dB SPL for clear audio performance
  • Signal-to-Noise Ratio: 64 dB for high-quality audio output
  • Sensitivity: 26 dBFS with 3 dB sensitivity for improved detection
  • Display Driver: IS31FL3197-QFLS2-TR driver with integrated charge pump for optimal performance

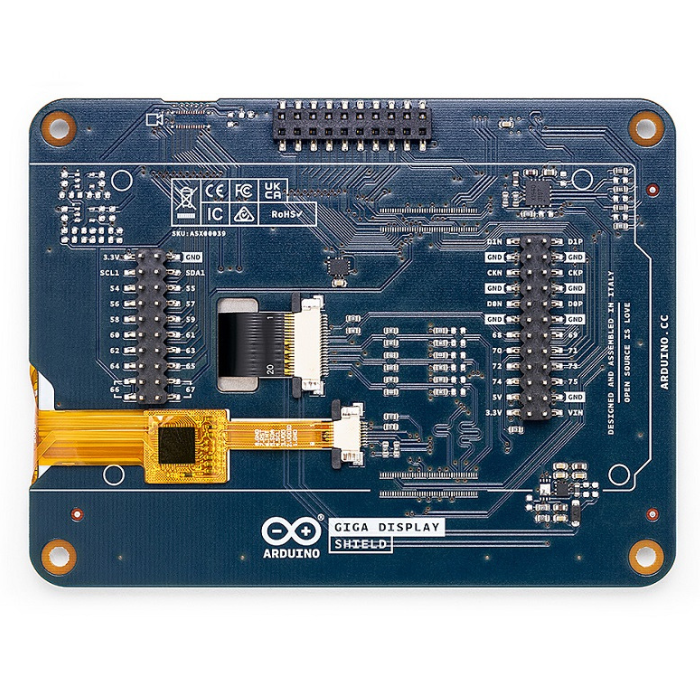

  • Connector: GIGA Connector for secure board attachment
  • Camera Connector: 2.54 mm camera connector for easy camera integration

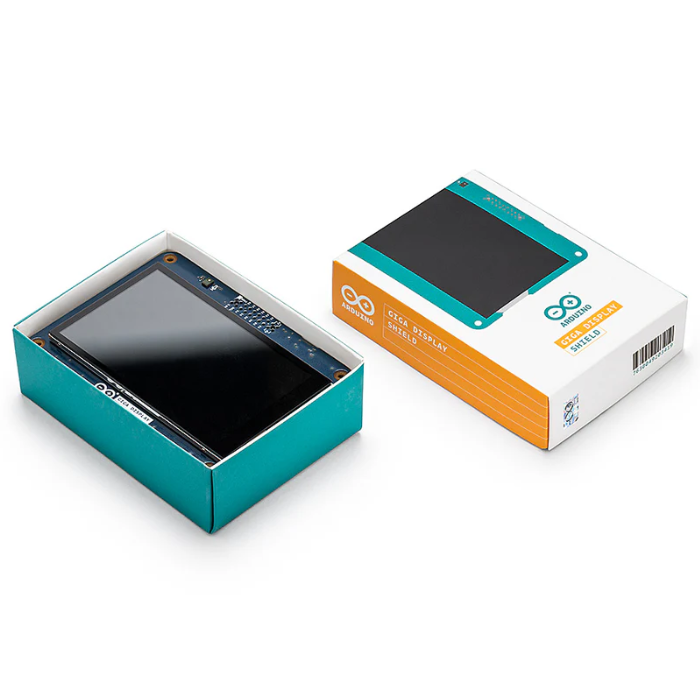

Package Includes:

  • 1 x Official Arduino GIGA Display Shield

Specifications:

Specification Details
Item Type Shield
Model Type Display Shield
Display KD040WVFID026-01-C025A 3.97" TFT Display
Display Resolution 480×800 pixels
Display Color 16.7 million colors
Pixel Size 0.108 mm
Touchscreen Yes (Capacitive Touch Sensor)
Touch Support 5-point multi-touch and gesture support
IMU 16-bit BMI270 6-axis IMU (Accelerometer + Gyroscope)
Accelerometer 3-axis, range: ±2g / ±4g / ±8g / ±16g
Gyroscope 3-axis, range: ±125dps / ±250dps / ±500dps / ±1000dps / ±2000dps
Audio Input MP34DT06JTR Digital Microphone:
– AOP: 122.5 dB SPL
– Signal-to-Noise Ratio: 64 dB
– Sensitivity: –26 dBFS ±3 dB
– Omnidirectional
