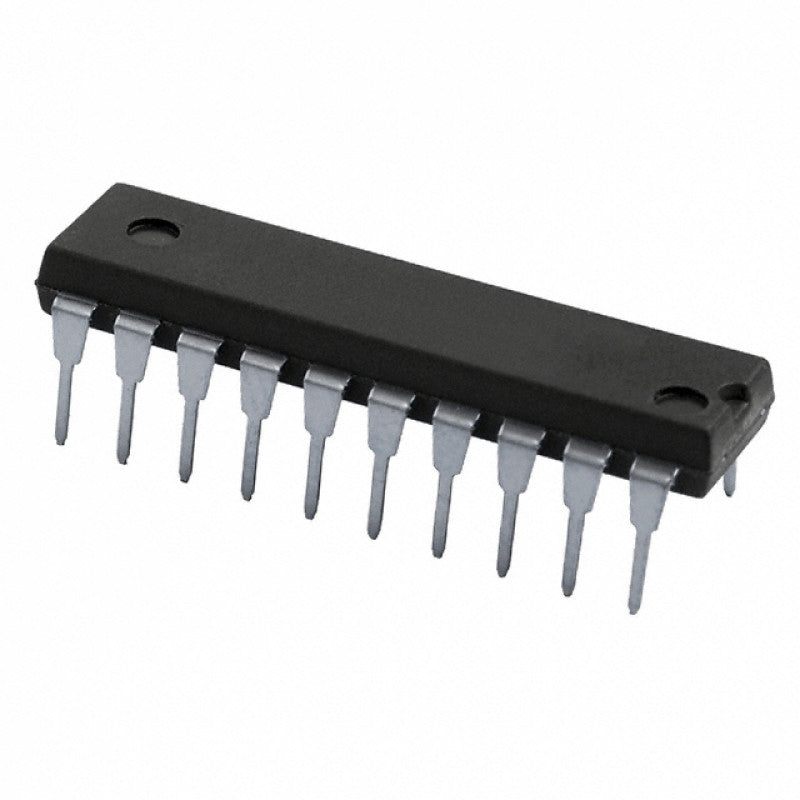

Octal 3-State Buffer/Line Driver IC - 74HC541
Octal 3-State Buffer/Line Driver IC - 74HC541
Regular price
Rs. 21
Regular price
Rs. 24
Sale price
Rs. 21
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 7 hours and 54 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Non-Inverting outputs
- Complies with JEDEC standard no. 7A
- Input levels: CMOS level
- For 74HCT541: TTL level ESD protection: HBM JESD22-A114F exceeds 2000 V and MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 °c to +85 °c and from -40 °c to +125°c
Octal 3-State Buffer/Line Driver IC - 74HC541
The 74HC Series 74HC541 IC is an octal non-inverting buffer/line driver with 3-state outputs. The device features two output enables (OE1 and OE2). A HIGH on OEn causes the outputs to assume a high-impedance OFF-state.
Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
check out : Octal 3-State Buffer/Line Driver IC - 74HC244
Pinout:
Pinout of 74HC541 IC
Applications:
- Industrial
- Automation & Process Control
- Signal Processing
- Automotive
Package Includes:
- 1 x IC - 74HC541
Specifications:
| Supply Voltage (VCC) | − 0.5 to + 7.0V |
| Input Clamping Current (IIK) | ± 20 mA |
| Output Voltage (VOUT) | − 0.5 to VCC + 0.5V |
| Output Clamping Current (IOK) | ± 20 mA |
| Output Current (IO) | ± 35 mA |
| DC VCC or GND Current, per pin (ICC, IGND) | ± 70 mA |
| Storage Temperature Range (TSTG) | − 65°C to + 150°C |
| Power Dissipation (PD) (Note 4) | 500 mW |
