Octal 3-State Buffer/Line Driver IC - 74HC244 - Buy Online in India

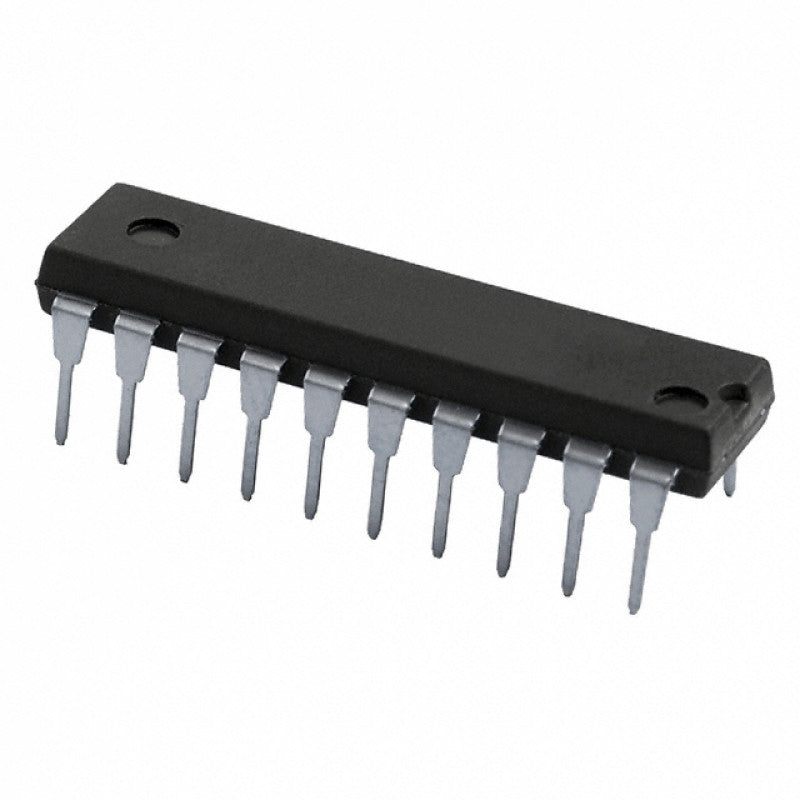

Octal 3-State Buffer/Line Driver IC - 74HC244

Rs. 24
Rs. 29
Rs. 24
Save Rs. 5
(-17%)
Size: Default Title
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 71 left in stock
SKU: TIFIC0146
  • 3-STATE outputs drive bus lines directly
  • PNP inputs reduce DC loading on bus lines
  • Hysteresis at data inputs improves noise margins
  • Typical IOL (sink current) 24 mA
  • Typical IOH (source current) −15 mA
  • Typical propagation delay times Inverting 10.5 ns Non-inverting 12 ns
  • Typical enable/disable time 18 ns
  • Typical power dissipation (enabled) Inverting 130 mW Non-inverting 135 mW
BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
74HC244 Octal 3-State Buffer IC – Octal buffer/line driver IC with 3-state outputs. -Robocraze
Octal 3-State Buffer/Line Driver IC - 74HC244
Rs. 29 Rs. 24
74HC244 Octal 3-State Buffer IC – Octal buffer/line driver IC with 3-state outputs. -Robocraze

Octal 3-State Buffer/Line Driver IC - 74HC244

Rs. 29 Rs. 24
Size: Default Title
Description

Octal 3-State Buffer/Line Driver IC - 74HC244

The 74HC Series 74HC244 buffers/line drivers are designed to improve both the performance and PC board density of 3-STATE buffers/ drivers employed as memory address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, they provide improved noise rejection and high fan-out outputs and can be used to drive terminated lines down to 133?.

Pinout:

Pinout Of 74HC244 IC
Specifications

Package Includes:

Selected qty of IC - 74HC244

Specifications:

Supply Voltage (VCC) 7 V
Input Voltage (VI) 7 V
Operating free-air temperature range 0°C to +70°C
Storage temperature range –65°C to +150°C
Additional Resources
FAQ

1.What is the function of 74HC244?

  • The 74HC244 is a buffer/line driver with three output states. The device can function as two 4-bit buffers or as a single 8-bit buffer. The device has two output enables (1OE and 2OE), each of which controls four of the three-state outputs. When nOE is HIGH, the outputs go into a high-impedance OFF state.

2.What does 74HC244 do?

  • The 74HC244 integrated circuit may drive terminated lines as low as 133. The 74HC244 octal buffers and line drivers are specifically designed to increase the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
