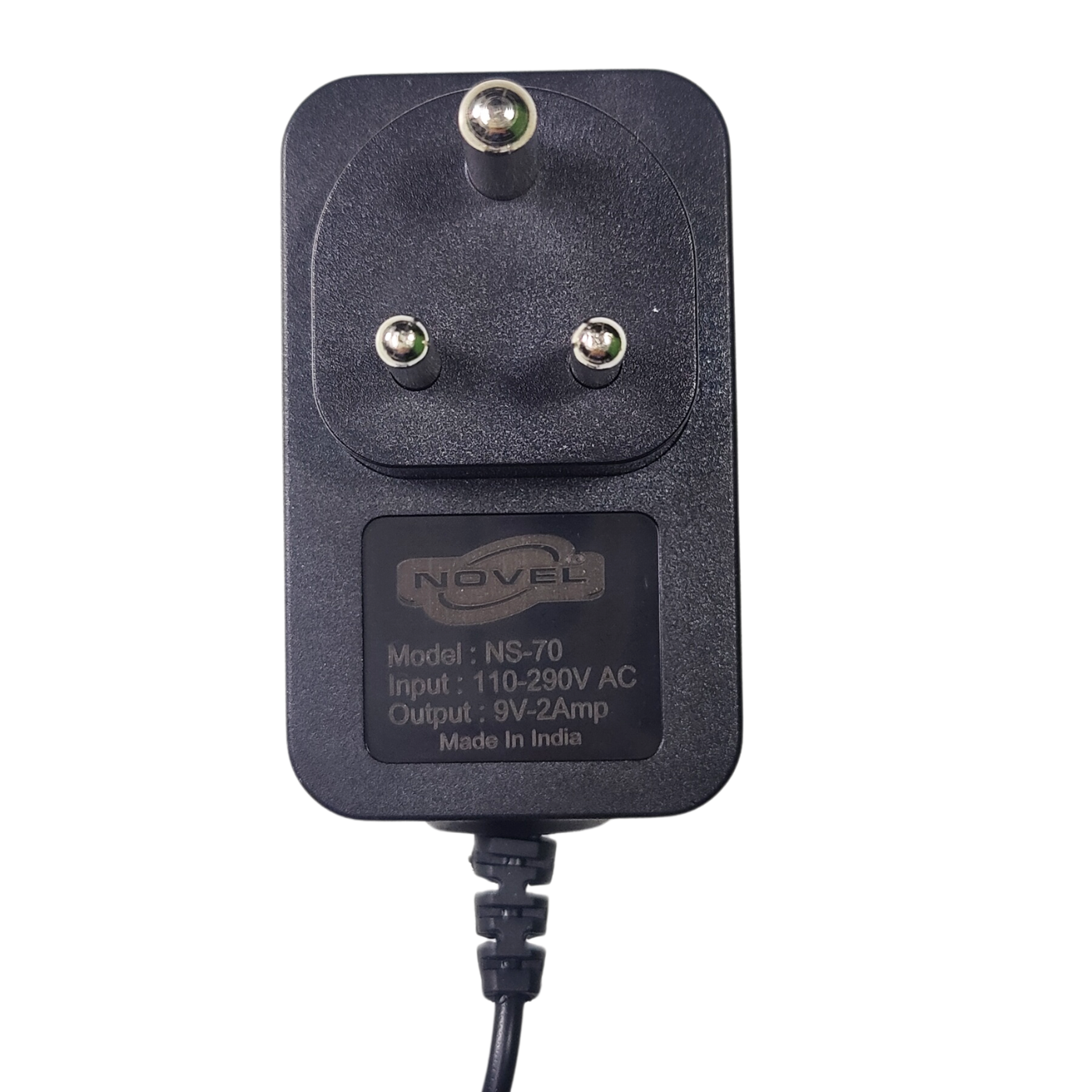

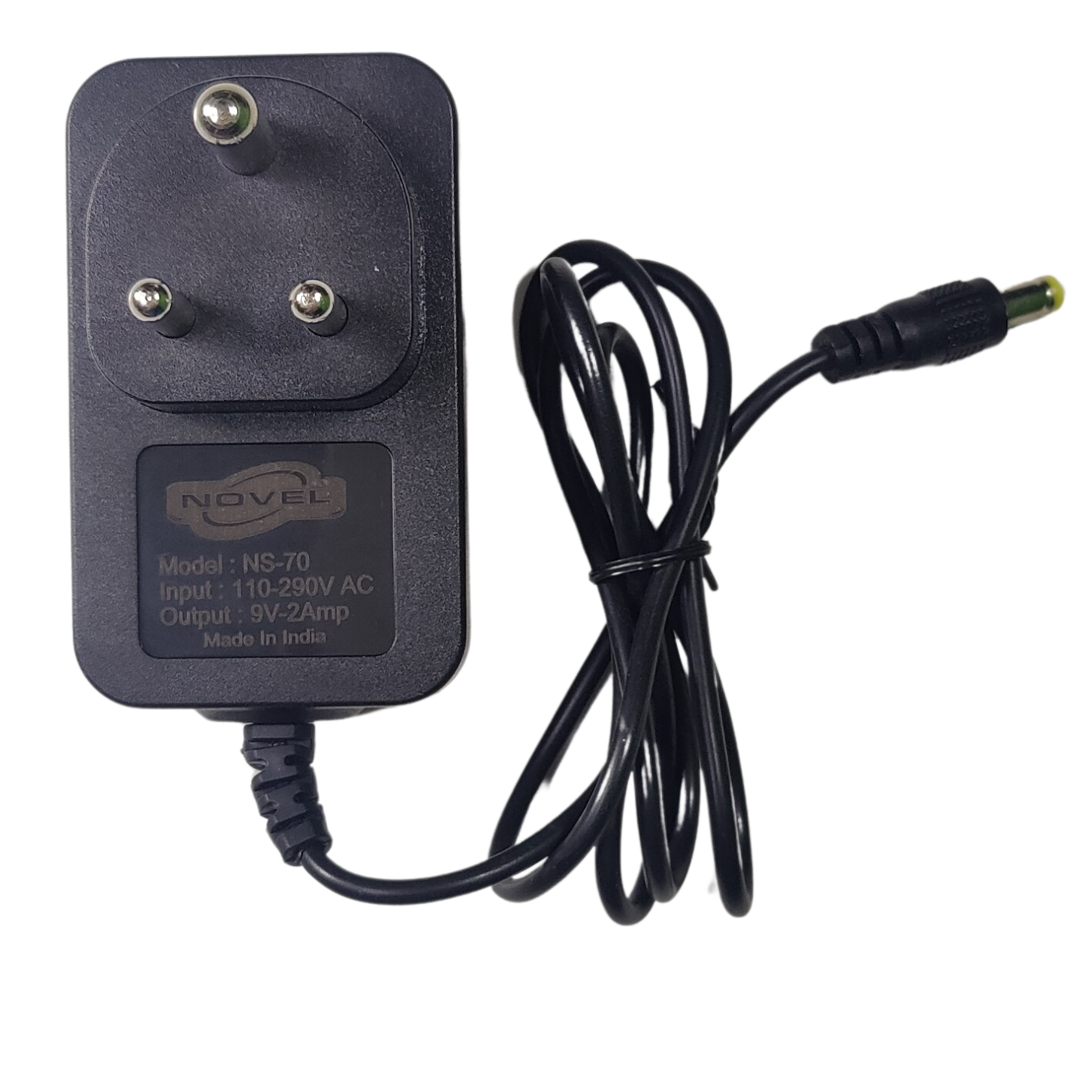

Novel 9V 2Amp Industrial Grade SMPS Power Adapter
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The Novel 9V 2A Industrial Grade SMPS Power Adapter is a reliable and efficient solution for powering various electronic devices.
With an input voltage range of 100V to 240V AC, it ensures compatibility with most power sources.
The adapter provides a stable 9V DC output at 2A, making it suitable for applications requiring consistent and regulated power.
Designed with industrial-grade components, this power adapter offers enhanced durability and performance.
It features built-in protections against short circuits and overloads, ensuring the safety of both the adapter and connected devices.
The compact design and long cable length add to its versatility, making it ideal for a wide range of electronic projects and applications.
| Parameter | Specification |
|---|---|
| Output Voltage (V) | 9 |
| Output Current (A) | 2 |
| Output Power (W) | 18 |

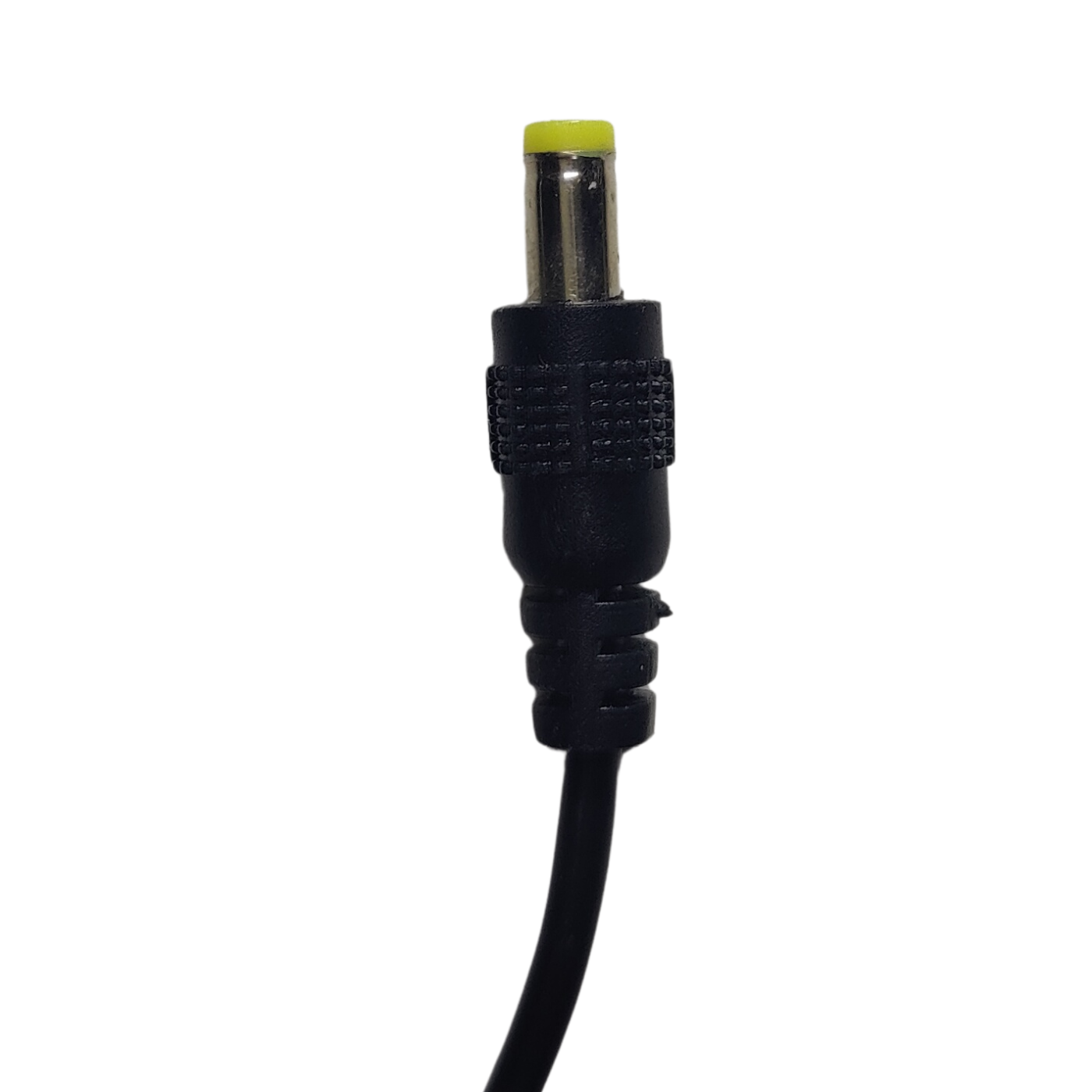

| Plug Type | 5.5mm DC Plug |
| Rated Input Voltage | 100V AC to 240V AC |
| Max Input Current | 0.1A at 230V AC input, 0.6A at 100V AC input |
| Max Output Current (mA) | 2000 |
| Efficiency | 80.29% Min at input 100-240V AC / 60Hz frequency, output with 9V DC full load |
| Rated Frequency | 50/60Hz |
| AC Socket | Indian plug-in |
| DC Output Plug | DC Plug |
| Color | Black |
| Operating Temperature (°C) | 2±40°C |
| Wire Size (AWG) | 20 |
| Cable Length (m) | 1.5 |
| Weight (g) | 130g ± 5g |
| Dimensions (L x W x H) mm | 75 x 40 x 30 |
