Nextion BASIC NX3224T024 2.4″ TFT ManMachine Interface HMI kernel LCD Touch Display

Nextion BASIC NX3224T024 2.4″ TFT ManMachine Interface HMI kernel LCD Touch Display

Regular price Rs. 2,068
Regular price Rs. 2,663 Sale price Rs. 2,068
Sale Sold out 22% off Best Price Guaranteed
You save Rs. 595
Incl. GST (No Hidden Charges)
  • This is Nextion BASIC NX3224T024 2.4″ TFT Man Machine Interface HMI kernel LCD Touch Display
  • This has 320 x 240 Resolution with RGB 65K true to life colors
  • This is compatible with Raspberry Pi A+, B+ and Raspberry Pi 2

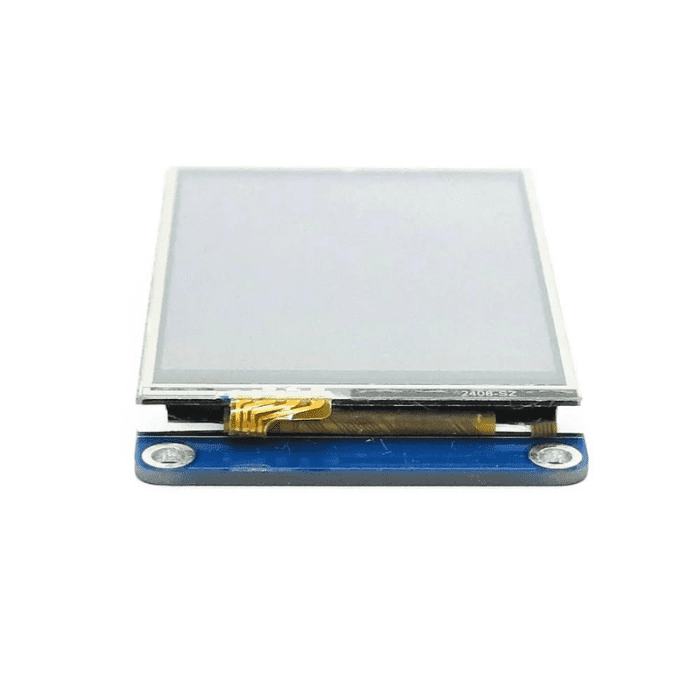

  • TFT Screen with integrated 4-wire Resistive Touch Panel

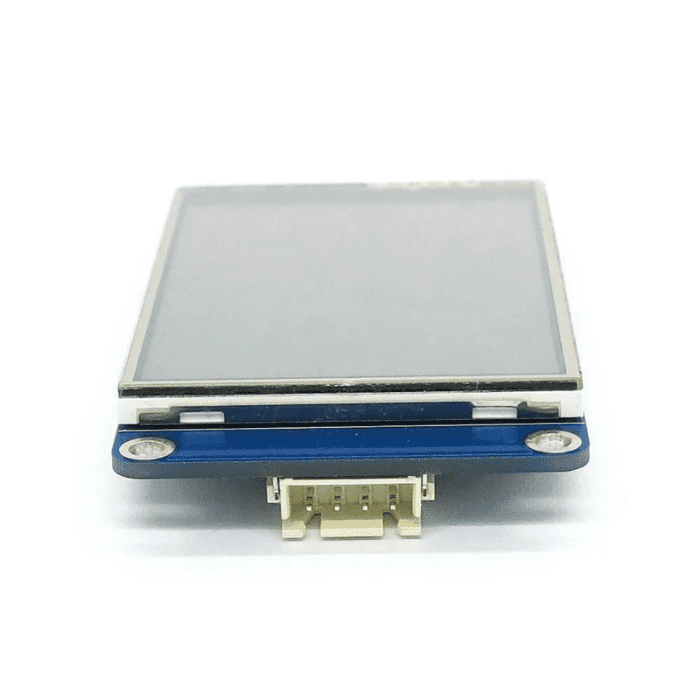

  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data

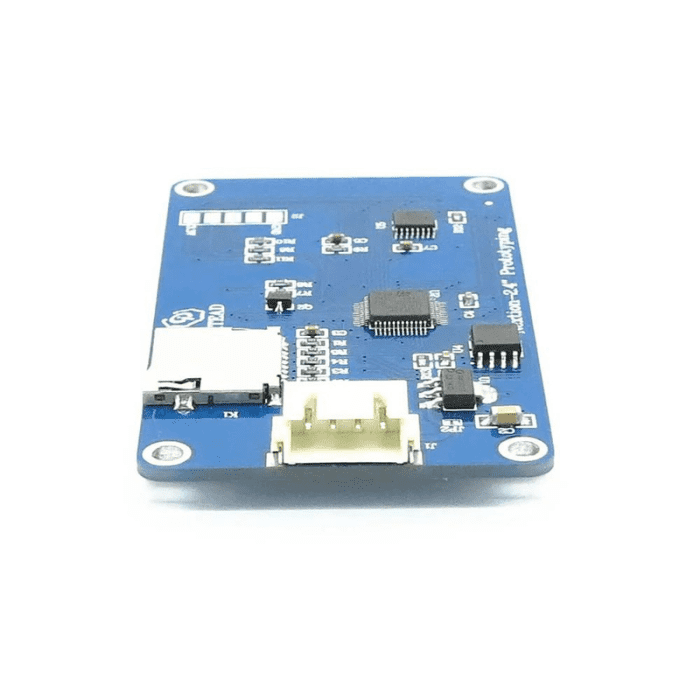

  • Onboard micro-SD card for firmware upgrade
  • Visual Area:36.72mm(L)×48.96mm(W)
  • Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
  • 5V90mA power consumption
  • Generic use for all Arduino or Raspberry Pi projects

Nextion BASIC NX3224T024 2.4 in TFT Man-Machine Interface HMI kernel LCD Touch Display

The Nextion NX3224T024-Generic 2.4′′ TFT Intelligent ManMachine Interface HMI kernel LCD Touch Display is a seamless Human Machine Interface (HMI) solution that serves as a control and visualization interface between a human and a process, machine, application, or appliance. This can be generally used for Arduino or Raspberry Pi project. Nextion is primarily used in the Internet of Things (IoT) or consumer electronics industries. It is the best replacement for traditional LCD and LED Nixie tubes. This consists of a hardware component (a series of TFT boards) and a software component (the Nextion editor). This TFT board communicates via a single serial port. It saves users the trouble of wiring. We discovered that most engineers devote a significant amount of time to application development but receive unsatisfactory results.

As a solution to this problem, Nextion editor includes numerous components such as buttons, text, progress bars, sliders, instrument panels, and so on to enhance the interface design. Furthermore, the drag-and-drop feature ensures that users spend less time programming, reducing 99% of their development workloads. Creating a GUI is a piece of cake with the help of this WYSIWYG editor.

Features:

  • Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
  • RGB 65K true to life colors
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data
  • Onboard micro-SD card for firmware upgrade
  • Generic using for all Arduino or Raspberry Pi project

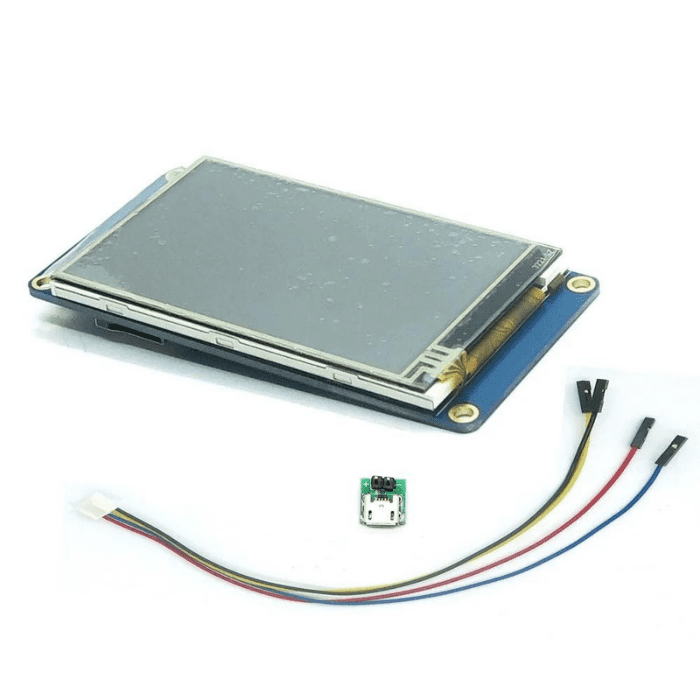

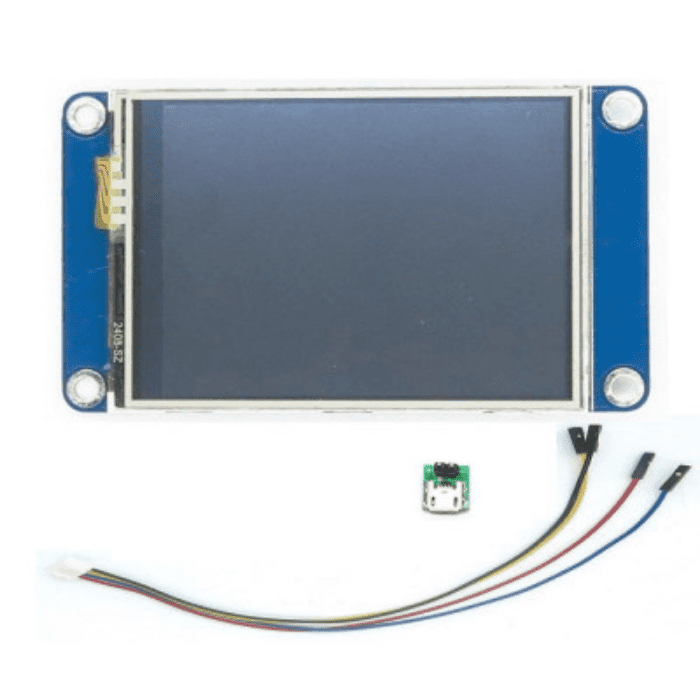

Package Includes:

  • 1 x Nextion NX3224T024 – Generic 2.4″ TFT Intelligent LCD Touch Display
  • 1 x Connecting Cable
  • 1 x Power Supply Test Board

Specifications:

Model No.

NX3224T024

Nextion Type

NX3224T024_011R (R: Resistive touchscreen)

Operating Voltage Range

4.75~7 V

Operating Current

90 mA

Layout Size

74.4 (L)×42.9 (W)×5.8 (H)

Net weight

31g

Touch Type

Yes

Colors

65K (65536) Colors, 16 bit, 5R6G5B

Recommended Power Supply

5V, 500mA, DC

Working Temperature Range

-20 to 70 ℃

Working Humidity Range

10% to 90% RH

USB Interface

No

Micro-SD Card Slot

Yes (FAT32 format), support maximum 32G Micro SD Card

Flash Memory

4 MB

RAM Memory

3584 BYTE
