N20 150 RPM DC Motor for Robotics High Torque
N20 150 RPM DC Motor for Robotics High Torque
Low stock: 1 left
Regular price
Rs. 256
Regular price
Rs. 344
Sale price
Rs. 256
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is a 150RPM DC Mini Metal Gear Motor,
- This gear motor is ideal for making robots.
- This motor is lightweight,
- Fine craftsmanship, durable, and easy to wear.
- You can also easily mount a wheel on the motor’s output shaft.
N20 150 RPM DC Motor for Robotics High Torque

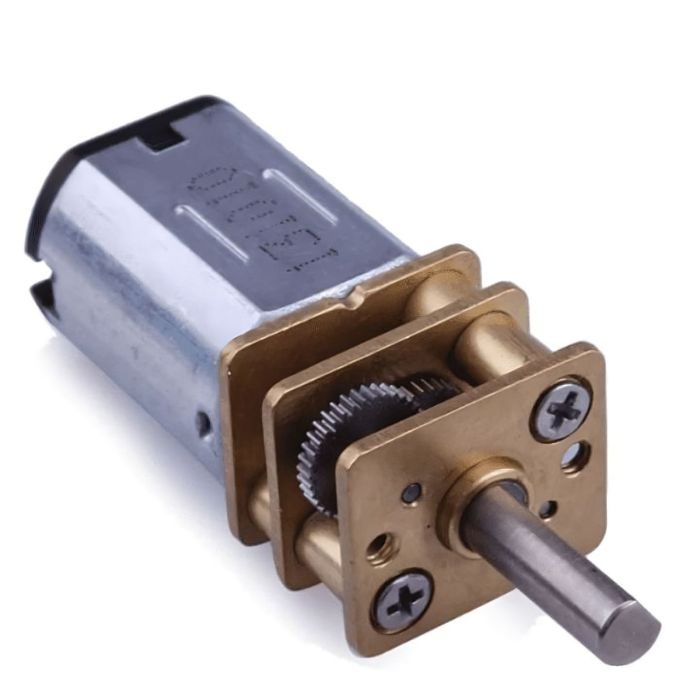

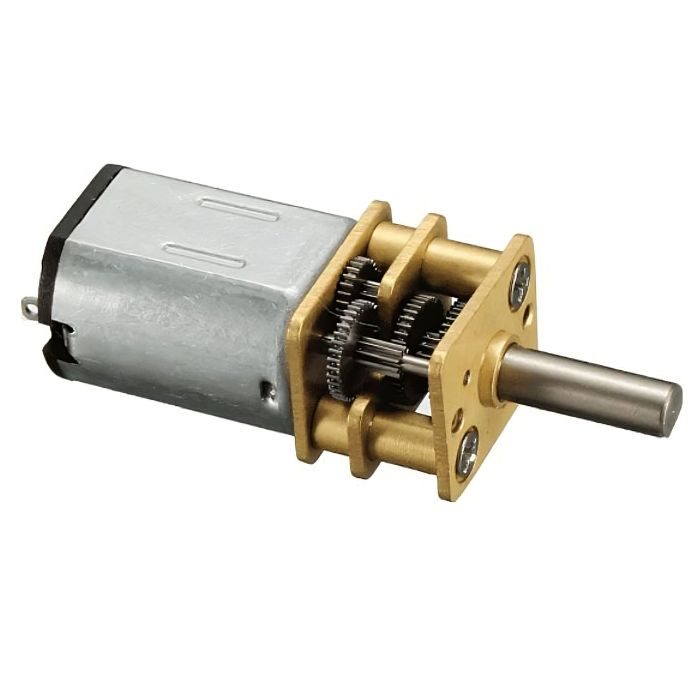

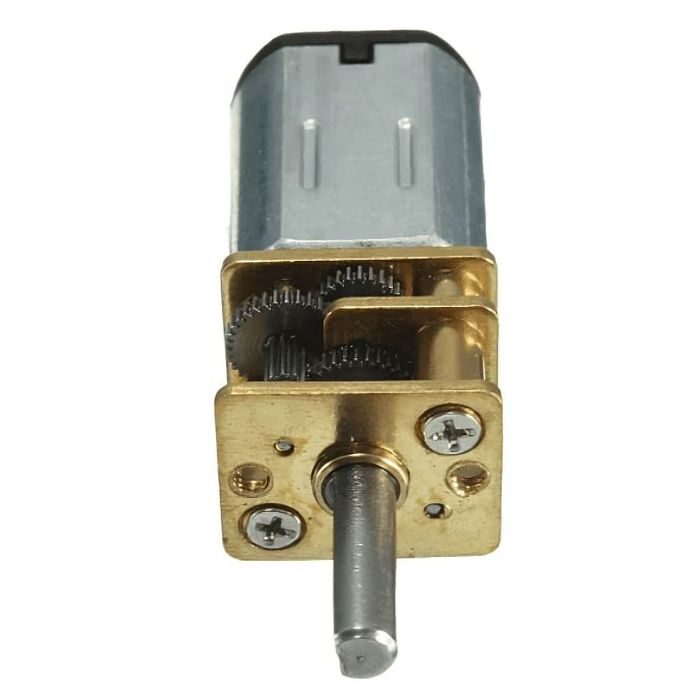

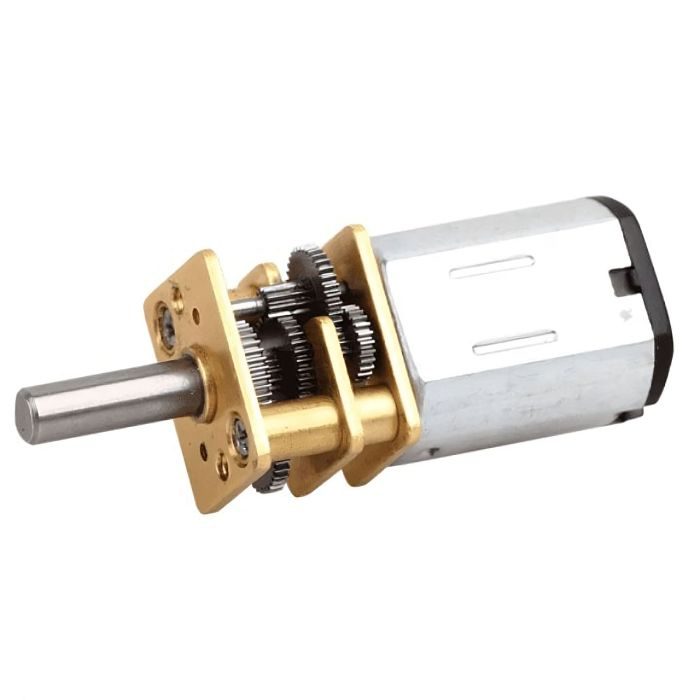

This N20 6v 150 RPM Metal Gear Micro DC Motor with Precious Metal Brush is a light weight high torque motor suitable for a variety of industrial and hobby applications as well. This DC gear motor is equipped with an all metal gearbox assembly which provides an amazing torque for this size of the motor. Also the brushes used in the motor are metal brushes and not carbon brushes. This ensures a higher working life of the motor compared with the motor with carbon brushes.
The N20 motor is ideal for small IIOT (Industrial IOT) products like electric lock, webcam pan tilt and other similar actuator products which need good torque in limited space and in less weight. For the hobby segment products like robotic cars, micro mouse, electric boat and all small motor related projects, where power consumption is a concern along with optimal pricing, the N20 all metal gear motor is a perfect fit.
Package Includes:
- 1 x N20 150 RPM DC Motor for Robotics High Torque
Specifications:
| Model No | GA12 N20 |
| Motor Type | Center Shaft DC Geared Motor |
| RPM | 150 |
| Rated Voltage | 6V DC |
| No Load Current | 10 mA |
| Rated Current | 20 mA |
| Stall Current | 1 A |
| Rated Torque | 0.10 Kgcm |
| Stall Torque | 0.80 Kgcm |
| Shaft Type | D-type Single Side |
| Shaft Diameter (mm) | 3mm |
| Shaft Length (mm) | 9mm |
| Weight (gm) | 10 |
