Multipurpose 20cm PCB Ruler – Engineering Measuring Tool
Couldn't load pickup availability

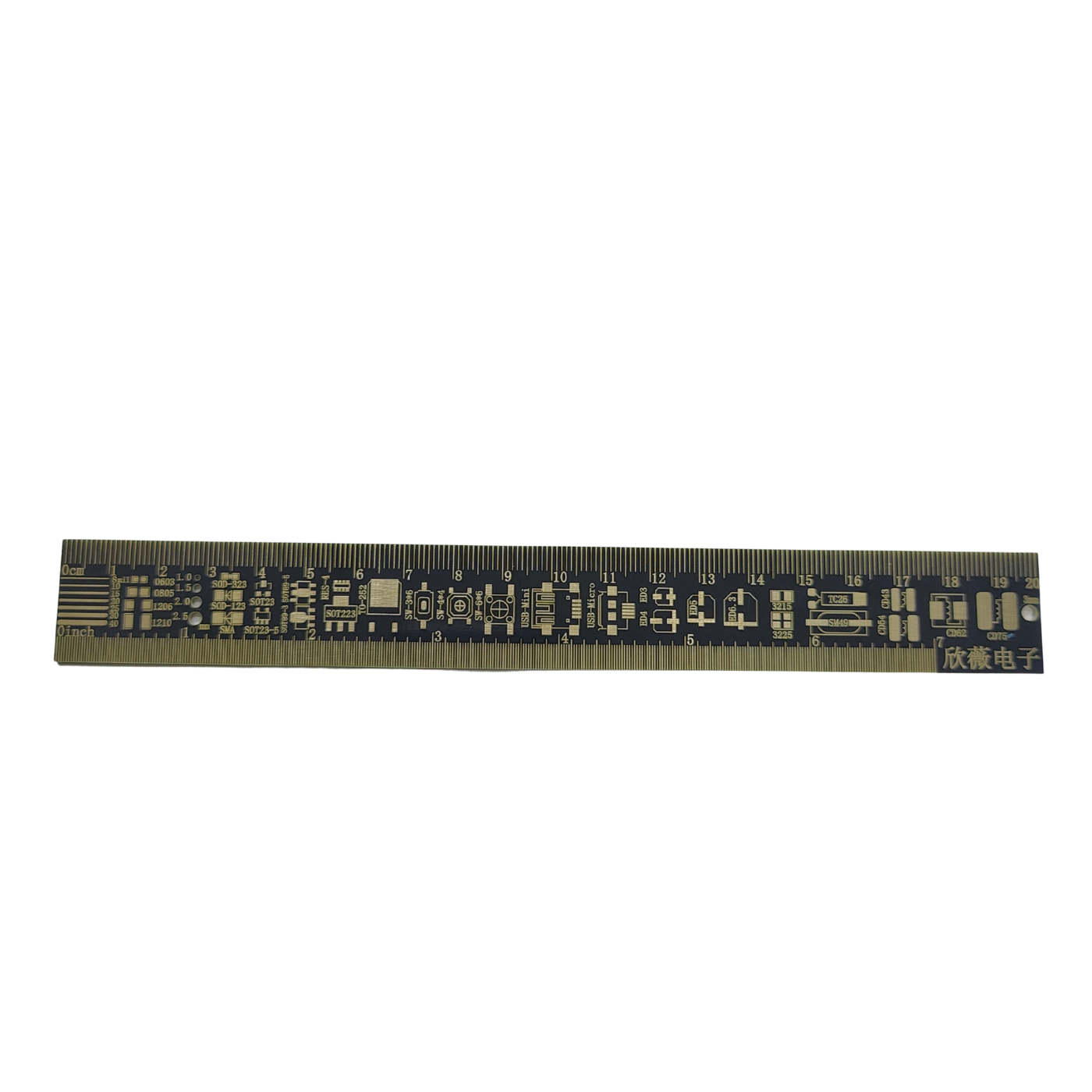

The Multipurpose 20cm PCB Ruler is a versatile and durable measuring tool crafted specifically for electronics engineers and PCB designers. Built from strong PCB material with copper etching and gold plating, it offers excellent durability and long-lasting clarity.
With dual-scale measurements in millimeters and inches, this extended 20cm ruler provides more workspace coverage, making it ideal for larger design measurements and technical tasks.
Beyond measurement, it serves as an essential PCB reference guide, featuring IC package outlines such as SOP-32, SOP-24, SOP-20, SOP18, SOP16, and SOP14, along with SMD resistor/capacitor size charts, hole diameter references, pin spacing guides, and polarity markings.
Whether you're prototyping, planning PCB layouts, or verifying component dimensions, this ruler helps streamline your workflow with quick, accurate, and readily available engineering data.
| Length | 200 mm |
|---|---|
| Width | 25 mm |
| Height | 1.5 mm |
| Weight | ~15 g (approx.) |
| Material | Gold-plated PCB |
| Measurement Scale | 20 cm / 8 inches |
| IC Package References | SOP-32, SOP-24, SOP-20, SOP18, SOP16, SOP14 |
| Additional References | Hole diameter guide, SMD package chart, polarity indicators, AWG reference, pin spacing guide |
