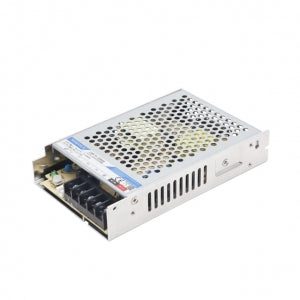

Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply

Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply

Out of stock

Regular price Rs. 3,398
Regular price Rs. 4,643 Sale price Rs. 3,398
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 1,245 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 200/- OFF RC200

When you shop for ₹ 5000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal input voltage range of 85 - 305V AC or 120 - 430VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating temperature range of -30℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage of up to 4000VAC
  • High efficiency and reliability
  • Output short circuit, over-current, over-voltage, and over-temperature protection
  • Built-in constant current limiting circuit
  • Remote ON-OFF control
  • Designed to meet IEC/EN/UL62368, EN60335, GB4943 standards
  • EN62368 safety approval
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Emissions meet CISPR32/EN55032 CLASS B

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply

The LMF75-23B12 is a 72W AC/DC converter-enclosed SMPS power supply from Mornsun. It has a universal input voltage of 85-305VAC or 120-430VDC, and can output a regulated 12V DC at up to 6A current. The efficiency is up to 87%, and the isolation voltage is 4000VAC.

The LMF75-23B12 is a versatile power supply that can be used in a variety of applications, such as industrial control, medical equipment, and LED lighting. It is also compliant with safety standards such as CE, FCC, and RoHS.

check out : Mornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LMF75-23B12 AC/DC 75W Enclosed Switching Power Supply

Specifications

Power output 72 watts
Input voltage range 85-305 VAC or 120-430 VDC
Output voltage 12 volts
Output current 6 amps
Efficiency 87%
Isolation voltage 4000 VAC
