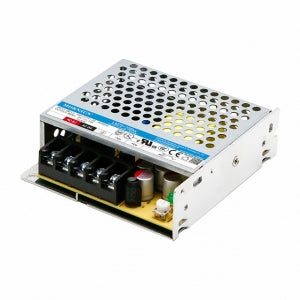

Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption and high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- Over-voltage class Ⅲ
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply
The LM75-23B55 is a 75W, 230VAC input, 55VDC output, 1.36A current, 90.5% efficient enclosed SMPS power supply from Mornsun. It features a universal input voltage range of 85-305VAC or 120-430VDC, a ripple and noise <1%, and an isolation voltage of 4000VAC. The LM75-23B55 is perfect for a variety of applications, including industrial control, instrumentation, and networking.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-23B55 AC/DC 75W Enclosed Switching Power Supply
Specifications
| Power | 75W |
| Input voltage | 85-305VAC or 120-430VDC |
| Output voltage | 55VDC |
| Current | 1.36A |
| Efficiency | 90.5% |
| Ripple and noise | <1% |
| Isolation voltage | 4000VAC |
