34 rc coinsMornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply

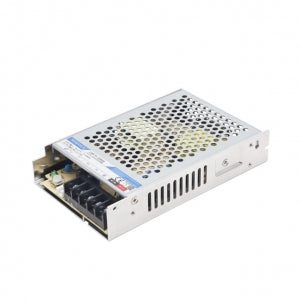

Mornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply
Out of stock
170 rc coinsCouldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range of 85-305VAC or 120-430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range: -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- High efficiency, high reliability
- Output short circuit, over-current, over-voltage, over-temperature protection (built-in constant current limiting circuit)
- Remote ON-OFF control
- Designed to meet IEC/EN/UL62368, EN60335, GB4943
- EN62368 safety approval
- Over-voltage class Ⅲ (designed to meet EN61558)
- Emissions meet CISPR32/EN55032 CLASS B
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply
The LMF75-23B24 is a 24V DC, 75W enclosed type AC/DC power supply from Mornsun. It has a universal input voltage range of 85-305VAC or 120-430VDC, and can be used in a wide range of applications. The LMF75-23B24 features built-in active PFC, high I/O isolation test voltage, high efficiency, high reliability, and a variety of protection features. It is also designed to meet IEC/EN/UL62368, EN60335, GB4943 safety standards.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LMF75-23B24 AC/DC 75W Enclosed Switching Power Supply
Specifications
| Output voltage | 24V DC |
| Output current | 3.2A |
| Maximum power | 75W |
| Input voltage range | 85-305VAC or 120-430VDC |
| Operating temperature range | -30℃ to +70℃ |
| Efficiency | 86% |
| Dimensions | 150 x 90 x 60mm |
| Weight | 0.4kg |
