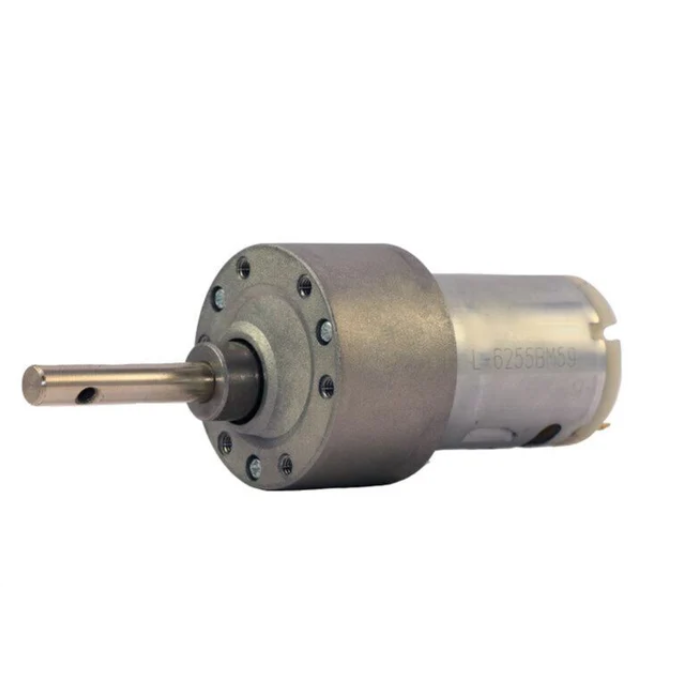

Johnson 300 RPM 12V DC Geared Motor (Grade A)
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The Johnson 300 RPM 12V DC Geared Motor (Grade A) is a high-quality, side shaft DC gear motor designed to deliver both speed and torque for demanding applications.
With a rotational speed of 300 RPM, this Johnson geared motor ensures rapid motion, making it ideal for automation projects, small machinery, or robotic systems requiring quicker cycles.
Its high torque output supports heavier loads without compromising on performance. The motor runs efficiently on 12V DC, making it compatible with a wide range of power setups.
Built with A-grade materials, this 300 RPM gear motor is engineered for durability, reliability, and smooth long-term operation—perfect for both hobbyists and professionals alike.

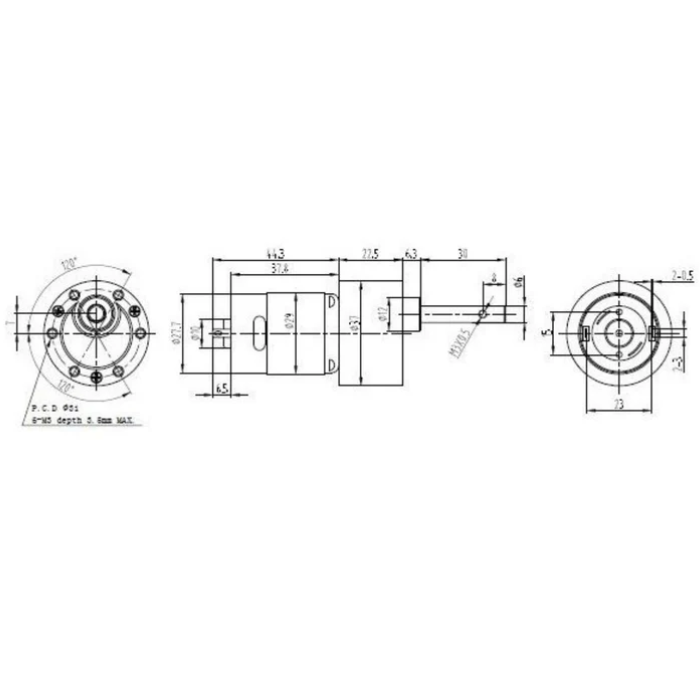

| Specification | Details |
|---|---|
| Motor Type | 300 RPM 12V DC Motor with Metal Gearbox |
| Base Motor Speed | 18000 RPM |
| Operating Voltage | 12V DC |
| Torque | 30 kg·cm |
| No-load Current | 800 mA |
| Load Current | Up to 7.5 A (Max) |
| Shaft Diameter | 6 mm with M3 Thread Hole |
| Shaft Length | 30 mm |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 28.5 mm |
| Motor Length (Without Shaft) | 63 mm |
| Weight | 180 grams |
