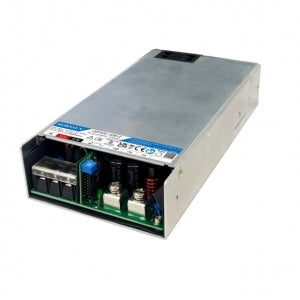

Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply
Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 20000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal AC input voltage of 80 - 277VAC or 110 - 390VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- Low standby power consumption, high efficiency, active PFC
- High I/O isolation test voltage up to 4000VAC
- The base plate with conformal coating
- Output short circuit, over-current, over-voltage, over-temperature protection
- Remote sense compensation, remote ON/OFF function
- DC_OK function
- Suitable for BF application
- With 5V/1A standby power
- Operating altitude up to 5000m
- Safety according to IEC62368, EN60335, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply
The LMF600-20B48 is a 600W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-277VAC or 110-390VDC, and a single output voltage of 48VDC at 12.6A. The power supply is also equipped with a number of features to improve its performance and reliability, including:
- High efficiency (up to 95%)
- Low no-load power consumption
- Double or reinforced insulation
- Excellent EMC performance
- Compliance with IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards
The LMF600-20B48 is a versatile power supply that can be used in a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF600-20B48 AC/DC 600W Enclosed Switching Power Supply
Specifications
| Power | 600W |
| Input voltage | 80-277VAC or 110-390VDC |
| Output voltage | 48VDC |
| Output current | 12.6A |
| Efficiency | up to 95% |
| No-load power consumption | <0.5W |
