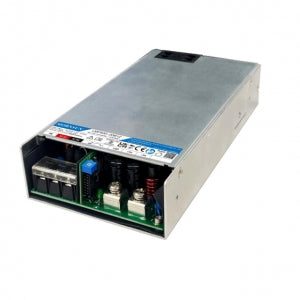

Mornsun LMF600-20B36 AC/DC 600W Enclosed Switching Power Supply

Mornsun LMF600-20B36 AC/DC 600W Enclosed Switching Power Supply

The LMF600-20B36 is a 600W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-277 VAC or 110-390 VDC, a single output of 36 VDC at 16.7A, and an isolation voltage of 4000 VAC. The LMF600-20B36 is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short-circuit protection.

Features:

• Universal AC input voltage of 80-277 VAC or 110-390 VDC
• Single output of 36 VDC at 16.7A
• Isolation voltage of 4000 VAC
• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Short-circuit protection

check out : Mornsun LMF600-20B24 AC/DC 600W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF600-20B36 AC/DC 600W Enclosed Switching Power Supply

Specifications
