108 rc coinsMornsun LMF500-20B24 AC/DC 500W Enclosed Switching Power Supply

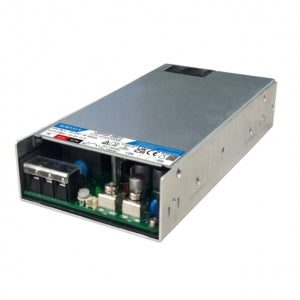

Mornsun LMF500-20B24 AC/DC 500W Enclosed Switching Power Supply
Out of stock
0
250 rc coinsCouldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 25000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 80 - 264VAC or 110 - 370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency, active PFC
- High I/O isolation test voltage up to 4000VAC
- Output short circuit constant current, over-current, over-voltage, over-temperature protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Remote sense compensation, remote ON/OFF function
- Safety according to IEC/UL62368, IEC/EN60601, EN60335, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF500-20B24 AC/DC 500W Enclosed Switching Power Supply
The LMF500-20B24 is a 500W enclosed AC/DC switching power supply from Mornsun. It features a universal AC input voltage of 80-264VAC, a DC output voltage of 24VDC, and a DC output current of 20.9A. The power supply is also equipped with a power factor correction (PFC) function, which helps to improve the power efficiency of the device.
The LMF500-20B24 is a cost-effective and reliable power supply that is suitable for a wide range of applications, including industrial, LED, streetlight control, electricity, security, telecommunications, and smart home.
Features:
- Universal AC input voltage of 80-264VAC
- DC output voltage of 24VDC
- DC output current of 20.9A
- Power factor correction (PFC) function
- High efficiency
- Low no-load power consumption
- High reliability
- Double or reinforced insulation
- Excellent EMC performance
- Meets IEC/EN/UL62368, IEC/EN60601, EN60335, GB4943, EN61558 standards
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF500-20B24 AC/DC 500W Enclosed Switching Power Supply
Specifications
| Power | 500W |
| Input voltage | 80-264VAC |
| Output voltage | 24VDC |
| Output current | 20.9A |
| Efficiency | 93% |
| Isolation | 4000VAC |
| Dimensions | 230 x 100 x 100mm |
| Weight | 3.5kg |
