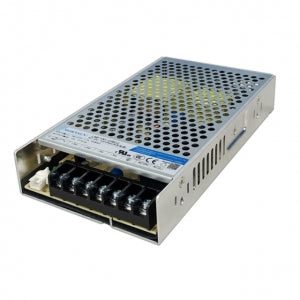

36 rc coinsMornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply
Mornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply
Out of stock
179 rc coinsCouldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 85 - 305V AC or 120 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range: -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Up to 87% efficiency
- Output short circuit, over-current, over-voltage, over-temperature protection (Built-in constant current limiting circuit)
- Remote ON-OFF control
- Safety according to IEC/EN60335, IEC/EN61558
- Emissions meets CISPR32/EN55032 CLASS B without extra components
- IEC/EN/UL62368, GB4943 safety approval
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply
The LMF100-23B12 is a 100W enclosed AC/DC power supply from Mornsun. It has a universal input voltage range of 85-305VAC and an output voltage of 12V. The power supply is also equipped with a power factor correction (PFC) circuit, which helps to improve the power efficiency of the device.
Features:
- Universal input voltage range of 85-305VAC
- Output voltage of 12V
- Power factor correction (PFC) circuit
- Built-in remote on/off switch
- Adjustable output voltage
- LED indicator for power on
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply
Specifications
| Specification | Value |
|---|---|
| Output power | 100W |
| Output voltage | 12V |
| Output current | 8.33A |
| Input voltage range | 85-305VAC |
| Input frequency | 50/60Hz |
| Power factor | 0.98 |
| Efficiency | 90% |
| Operating temperature range | -30 to +70 degrees Celsius |
| Dimensions | 170 x 100 x 60mm |
| Weight | 1.3kg |
