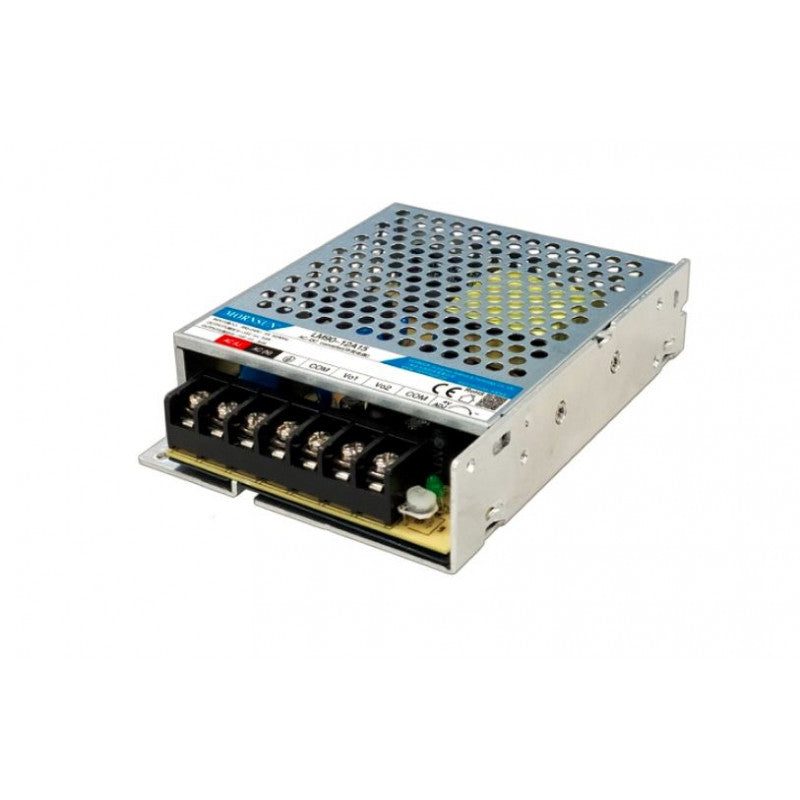

Mornsun LM90-12A15 AC/DC 90W Enclosed Switching Power Supply
Mornsun LM90-12A15 AC/DC 90W Enclosed Switching Power Supply
Out of stock

Couldn't load pickup availability

Free shipping on Orders Above Rs 499/-
Fast Delivery

Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards

Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Special switching power supply designed for professional laser galvanometer industry
- Universal input voltage of 165 - 264VAC or 180 - 370VDC
- Operating ambient temperature range of -30℃ to +70℃
- Low ripple & noise
- High I/O isolation test voltage up to 3000VAC
- Operating altitude up to 5000m
- Output short circuit, over-current, and over-voltage protection
- Design compliant with IEC/UL62368-1, EN60335-1, EN61558-1, and GB4943.1
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM90-12A15 AC/DC 90W Enclosed Switching Power Supply
The LM90-12A15 series is a dual output, non-isolation, enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, DC input voltage acceptance, cost-effectiveness, high efficiency, high reliability, double or reinforced insulation, excellent EMC performance, and compliance with IEC/EN61000-4, IEC/UL/EN62368, and GB4943 standards. It is not only used in the laser galvanometer industry, but also in current sensors, motors, and other fields.
Features
- Universal AC input: The LM90-12A15 series can be used with a wide range of AC input voltages, making it suitable for use in a variety of locations.
- DC input voltage acceptance: The LM90-12A15 series can also be used with DC input voltages, providing additional flexibility.
- Cost-effectiveness: The LM90-12A15 series is a cost-effective solution for a variety of applications.
- High efficiency: The LM90-12A15 series is highly efficient, helping to reduce power consumption and costs.
- High reliability: The LM90-12A15 series is designed to be highly reliable, providing peace of mind for users.
- Double or reinforced insulation: The LM90-12A15 series features double or reinforced insulation, providing additional safety.
- Excellent EMC performance: The LM90-12A15 series has excellent EMC performance, making it suitable for use in a variety of environments.
- Compliance with IEC/EN61000-4, IEC/UL/EN62368, and GB4943 standards: The LM90-12A15 series complies with a variety of industry standards, ensuring its quality and performance.
The LM90-12A15 series is a versatile and reliable power supply that can be used in a variety of applications. It is a cost-effective solution that offers excellent performance and features.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be cl assified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM90-12A15 AC/DC 90W Enclosed Switching Power Supply
Specifications:
Type |
Enclosed Type Dual Output |
Output Power | 90W |
Series | LM90-12A |
Part Number | LM90-12A15 |
Mount | Enclosed |
IP Level | Non-Waterproof |
Output Voltage | 15V, -15V |
Output Current | 3A, 3A |
