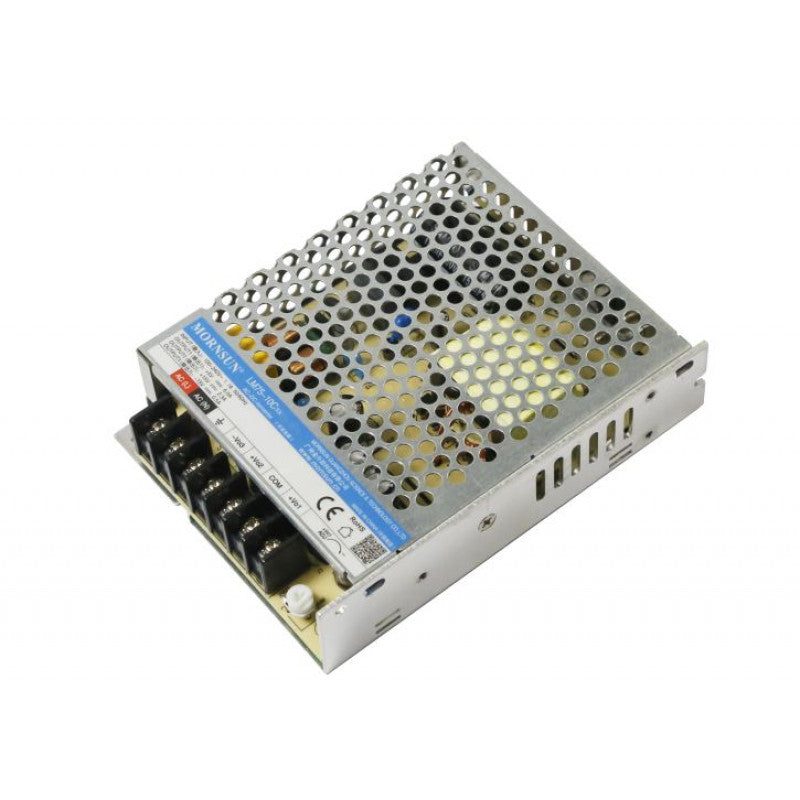

Mornsun LM75-10C051212-28 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-10C051212-28 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 90 - 264VAC or 120 - 370VDC
- Operating ambient temperature range of -30℃ to +70℃
- High efficiency, high reliability, and long service life
- LED indicator for power on
- Output short circuit, over-current, and over-voltage protection
- High I/O isolation test voltage of up to 3000VAC
- Withstands 5G vibration test
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-10C051212-28 AC/DC 75W Enclosed Switching Power Supply
The LM75-10C051212-28 is a power converter with three output versions that can independently supply three different loads in a system. It can be used in harsh environments with a temperature range of -30 to 70 degrees Celsius, and does not require a fan for cooling. The converter meets the requirements of IEC61000, CISPR32/EN55032, class B, and IEC/EN/UL62368, EN60335, GB4943 safety standards. It also features a variety of protection features and offers a high-performance to low-cost ratio. This makes it a good choice for a variety of industries, such as industrial control equipment, instrumentation, and smart home and building equipment.
check out : Mornsun LM35-10C051212-10 AC/DC 35W Enclosed Switching Power Supply
Features
- Three output versions
- Independent load supply
- Wide temperature range
- No fan required
- Meets safety standards
- Variety of protection features
- High-performance to low-cost ratio
This makes it a versatile and reliable power solution for a variety of applications.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-10C051212-28 AC/DC 75W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Triple Output |
| Output Power | 69.6W |
| Series | LM75-10C |
| Part Number | LM75-10C051212-28 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 5V, 12V, -12V |
| Output Current | 6A, 2.8A, 0.5A |
