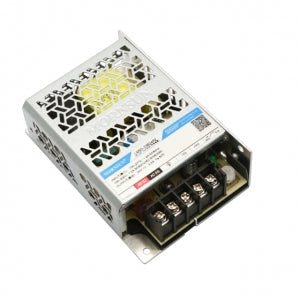

Mornsun LM50-23B24R2 AC/DC 50W Enclosed SMPS
Mornsun LM50-23B24R2 AC/DC 50W Enclosed SMPS
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 80 - 305VAC or 100 - 430VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +85℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- OVC Ⅲ (meet EN62477)
- Operating altitude up to 5000m
Mornsun LM50-23B24R2 AC/DC 50W Enclosed Switching Power Supply
The LM50-23B24R2 is a compact, enclosed AC/DC power supply from Mornsun. It has a universal AC input voltage range of 80-305 VAC or 100-430 VDC, and a single output of 24 VDC at 2.2A. The efficiency of the power supply is up to 89.5%, and it has an isolation voltage of 4000 VAC. The power supply is also protected against overvoltage, undervoltage, overcurrent, and short circuits.
The LM50-23B24R2 is a versatile power supply that can be used in a variety of applications, including industrial control, automation, and telecommunications. It is also a good choice for use in harsh environments, as it is protected against dust and moisture.
check out : Mornsun LM50-23B12R2 AC/DC 50W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations, and shall be handled by qualified units
- The power supply is considered a component which will be installed into a final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS
Package Includes:
1 x Mornsun LM50-23B24R2 AC/DC 50W SMPS
Specifications:
| Technical Specifications | Description |
|---|---|
| Temperature Range | -40°C to +125°C |
| Supply Voltage Range | 2.7V to 5.5V |
| Package Type | SOT-23 |
| Output | Digital |
| Accuracy | ±2°C (maximum) |
| Conversion Time | 50 ms (typical) |
| Operating Current | 120 µA (typical) |
