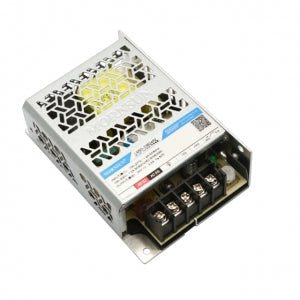

Mornsun LM50-23B12R2 AC/DC 50W Enclosed SMPS
Mornsun LM50-23B12R2 AC/DC 50W Enclosed SMPS
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range: 80 - 305VAC or 100 - 430VDC
- Accepts both AC and DC input (dual-use of the same terminal)
- Operating ambient temperature range: -40°C to +85°C
- Low standby power consumption and high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple and noise
- Protection features for output short circuit, over-current, and over-voltage
- Designed to meet OVC III safety standard (EN62477)
- Operating altitude up to 5000m
Mornsun LM50-23B12R2 AC/DC 50W Enclosed SMPS
The LM50-23B12R2 is a 50W, 12V AC/DC power supply from Mornsun. It has a wide input voltage range of 80-305VAC and 100-430VDC, making it suitable for use in a variety of applications. The power supply also features a number of safety protections, including overvoltage, undervoltage, overcurrent, and short circuit protection.
check out : Mornsun LM50-23B36 AC/DC 50W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS
Package Includes:
1 x Mornsun LM50-23B12R2 AC/DC 50W Enclosed SMPS
Specifications:
| Specification | Value |
|---|---|
| Output Power | 50W |
| Output Voltage | 12V |
| Input Voltage Range | 80-305VAC, 100-430VDC |
| Efficiency | 90% |
| Ripple | <1% |
| Dimensions | 150 x 90 x 50mm |
| Weight | 1.5kg |
