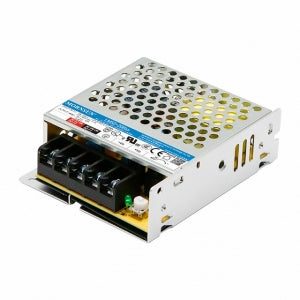

Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS
Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85 to 264 VAC or 120 to 370 VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30 to +70 degrees Celsius
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000 VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000 meters
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS
The LM50-20B12 is a 50 watt, 12 volt, 4.2 amp switch-mode power supply (SMPS) from Mornsun. It is a non-isolated, positive output SMPS that is designed for use in a variety of applications, including industrial automation, networking, and telecommunications.
The LM50-20B12 features a wide input voltage range of 100 to 240 VAC, making it suitable for use in a variety of global markets. It also features a high efficiency of up to 88%, which helps to reduce power consumption and heat dissipation.
The LM50-20B12 is a compact and lightweight unit that measures just 2.2 x 2.2 x 1.2 inches and weighs only 0.4 pounds. It is also built to withstand harsh environmental conditions, with an operating temperature range of -20 to 60 degrees Celsius and a relative humidity range of 0 to 95%.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-20B12 AC/DC 50W Enclosed SMPS
Specifications:
| Specification | Value |
|---|---|
| Output power | 50 watts |
| Input voltage | 100 to 240 VAC |
| Output voltage | 12 VDC |
| Output current | 4.2 A |
| Efficiency | 88% |
| Dimensions | 2.2 x 2.2 x 1.2 inches |
| Weight | 0.4 pounds |
| Operating temperature | -20 to 60 degrees Celsius |
| Relative humidity | 0 to 95% |
