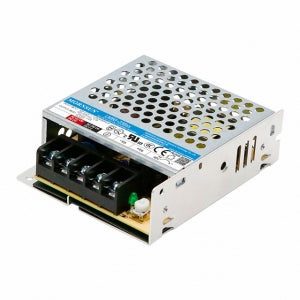

Mornsun LM50-23B36 AC/DC 50W Enclosed Switching Power Supply
The LM50-23B36 is a 36V, 52.2W enclosed AC/DC converter from Mornsun. It has a wide input voltage range of 85-305VAC or 120-430VDC, and can output up to 1.45A of current. The converter is also highly efficient, with an efficiency rating of up to 89%. It is also isolated from the input voltage by a 4000VAC barrier, making it safe to use in hazardous environments.
The LM50-23B36 is a versatile and reliable power supply that can be used in a wide variety of applications. It is ideal for use in industrial, medical, and commercial settings.
Features:
- 36V, 52.2W output
- Wide input voltage range: 85-305VAC or 120-430VDC
- Up to 1.45A output current
- High efficiency: up to 89%
- Isolated from input voltage by a 4000VAC barrier
- Rugged and durable construction
- Suitable for use in hazardous environments
check out : Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
