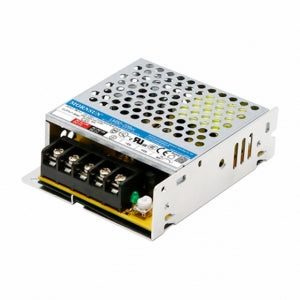

Mornsun LM50-22B15 AC/DC 50W Enclosed Switching Power Supply
Mornsun LM50-22B15 AC/DC 50W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Input voltage: 165 - 264VAC or 180 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM50-22B15 AC/DC 50W Enclosed Switching Power Supply
The LM50-22B15 is a 50W AC/DC switching power supply from Mornsun. It features an AC input voltage range of 85 to 264VAC, a DC output voltage of 15VDC, and a maximum output current of 3.4A. The LM50-22B15 is also equipped with a number of features that make it ideal for a variety of applications, including:
- High efficiency: The LM50-22B15 has a high efficiency of up to 88%, which helps to reduce energy consumption and heat dissipation.
- Low no-load power consumption: The LM50-22B15 has a low no-load power consumption of less than 1W, which helps to save energy when the power supply is not in use.
- Double or reinforced insulation: The LM50-22B15 features double or reinforced insulation, which helps to protect against electrical shock.
- Excellent EMC performance: The LM50-22B15 meets a number of EMC standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943.
The LM50-22B15 is a versatile and reliable AC/DC switching power supply that is ideal for a wide range of applications. It is commonly used in industrial automation, control panels, LED lights, and other applications that require a reliable and efficient power supply.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-22B15 AC/DC 50W Enclosed Switching Power Supply
Specifications:
| Power | 50W |
| Input voltage | 85-264VAC |
| Output voltage | 15VDC |
| Output current | 3.4A |
| Efficiency | Up to 88% |
| Noise | <30dB |
| MTBF | 100,000 hours |
