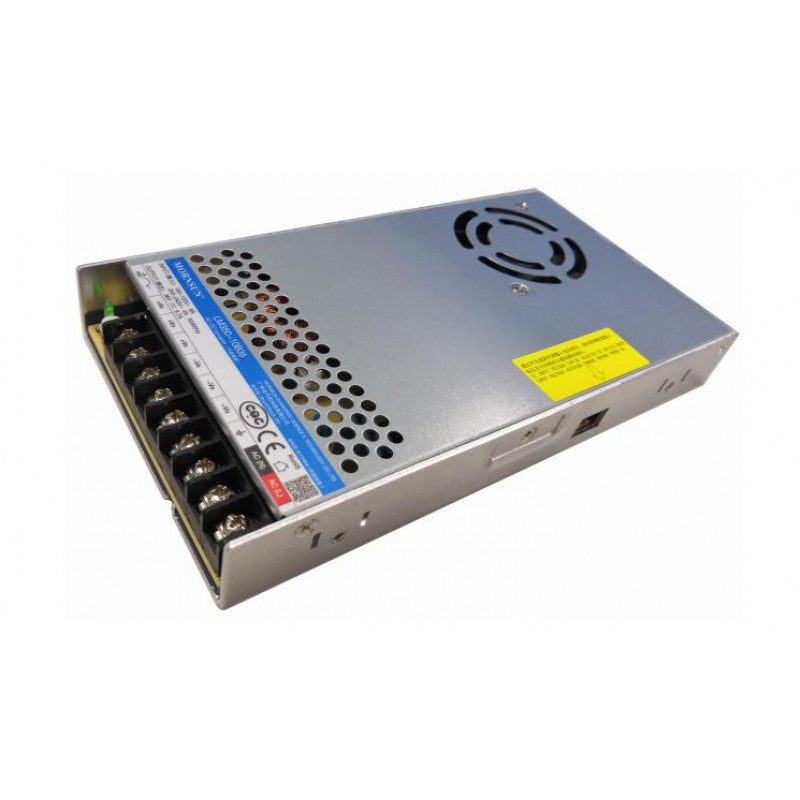

Mornsun LM350-10B12 AC/DC 350W Enclosed Switching Power Supply
Mornsun LM350-10B12 AC/DC 350W Enclosed Switching Power Supply
In stock
Couldn't load pickup availability
Contact form
- Selectable AC input range: 90 - 132VAC/180- 264VAC
- DC input range: 240 - 370VDC
- Ultra low standby power consumption < 0.75W@230VAC
- Operating ambient temperature range: - 30℃to+70℃
- LED indicator for power on
- Output short circuit, over-current, over-voltage, over-temperature protection
- Built-in DC fan
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM350-10B12 AC/DC 350W Enclosed Switching Power Supply
The LM350-10B12 is an enclosed AC-DC switching power supply from Mornsun. It features a selectable AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, and high reliability. The power supply offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards. It is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
check out : Mornsun LM350-10B48 AC/DC 350W Enclosed Switching Power Supply
Features
- Selectable AC input
- Accepts DC input voltage
- Cost-effective
- Low no-load power consumption
- High efficiency
- High reliability
- Excellent EMC performance
- Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards
- Widely used in a variety of applications
If you are looking for a reliable and efficient AC-DC switching power supply, the LM350-10B12 is a great option. It is perfect for a variety of applications, and it meets the latest safety and performance standards.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM350-10B12 AC/DC 350W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 348W |
| Series | LM350-10B |
| Part Number | LM350-10B12 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 12V |
| Output Current | 29A |
