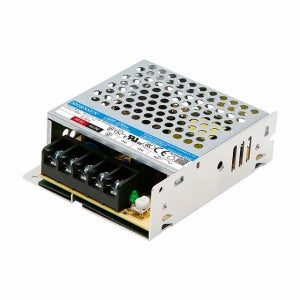

Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply
Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply
Out of stock
Regular price
Rs. 1,246
Regular price
Rs. 1,703
Sale price
Rs. 1,246
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Couldn't load pickup availability
Contact form
- Universal 85 - 305VAC or 120 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Safety according to IEC/EN/UL62368, EN60335, EN61558, GB4943
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply
The LM35-23B24 is an enclosed AC/DC switching power supply from Mornsun. It has a universal AC input range of 85 to 305 VAC and an output voltage of 24 VDC. The power supply is also adjustable, with a maximum output current of 1.5 A. It has a high efficiency of up to 87% and can operate up to an altitude of 5000 m. The LM35-23B24 is certified to IEC/EN 62368-1 and UL 62368-1 for industrial safety. It has a LED indicator for power on and a no load power consumption of less than 0.3 Watts.
Features:
- Universal AC input range of 85 to 305 VAC
- Output voltage of 24 VDC
- Adjustable output voltage
- Maximum output current of 1.5 A
- High efficiency of up to 87%
- Operation up to an altitude of 5000 m
- IEC/EN 62368-1 and UL 62368-1 certified for industrial safety
- LED indicator for power on
- No load power consumption of less than 0.3 Watts
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply
Specifications:
| Output power | 35 W |
| Input voltage | 85 to 305 VAC |
| Output voltage | 24 VDC |
| Output current | 1.5 A |
| Efficiency | up to 87% |
| Operating temperature | -30 to +70°C |
| Weight | 0.4 kg |
| Dimensions | 190 x 110 x 60 mm |
