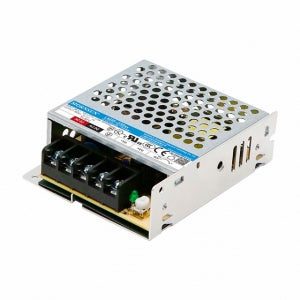

Mornsun LM35-23B05 AC/DC 35W Enclosed Switching Power Supply
Mornsun LM35-23B05 AC/DC 35W Enclosed Switching Power Supply
Out of stock
Regular price
Rs. 1,356
Regular price
Rs. 1,853
Sale price
Rs. 1,356
Unit price
/
per
You save Rs. 497
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here
Contact form
- Universal input voltage of 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption and high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- Safety according to IEC/EN/UL62368, EN60335, EN61558, GB4943
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM35-23B05 AC/DC 35W Enclosed Switching Power Supply
The LM35-23B05 is an industrial power supply manufactured by Mornsun. It is a type of 305RAC power supply with a wide input voltage range of 85VAC to 305VAC. It offers an output voltage of 5VDC and a maximum power output of 35W. The power supply has a high efficiency of 86% and provides isolation of up to 4000VAC.
Features
- Power(W): 35
- Vin(VAC): 85-305
- Vin(VDC): 120-430
- Vout(VDC): 5
- Iout: 7A
- Efficiency(%): 86
- Isolation: 4000VAC
check out : Mornsun LM35-22B12 AC/DC 35W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM35-23B05 AC/DC 35W Enclosed Switching Power Supply
Specifications
Power (W) | 35 |
Input Voltage (VAC) | 85-305 |
Input Voltage (VDC) | 120-430 |
Output Voltage (VDC) | 5 |
Output Current (A) | 7 |
Efficiency (%) | 86 |
Isolation (VAC) | 4000 |
