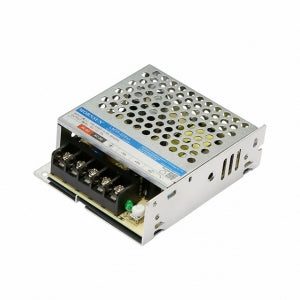

Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply
Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Contact form
- Input voltage: 165 - 264VAC or 180 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply
The LM35-22B05 is a 35W enclosed switching power supply from Mornsun. It features an AC input of 165-264VAC or a DC input of 180-370VDC, and can be used to output a regulated DC voltage of 5V at a current of up to 7A. The LM35-22B05 has a number of features that make it a versatile and reliable power supply for a variety of applications, including:
- High efficiency: The LM35-22B05 has a high efficiency of up to 86%, which helps to reduce power consumption and heat dissipation.
- Low noise: The LM35-22B05 produces very low noise, which makes it ideal for use in sensitive applications.
- Over-voltage protection: The LM35-22B05 has over-voltage protection to prevent damage to the power supply or connected equipment.
- Short circuit protection: The LM35-22B05 has short circuit protection to prevent damage to the power supply or connected equipment.
- Over current protection: The LM35-22B05 has over current protection to prevent damage to the power supply or connected equipment.
The LM35-22B05 is a compact and easy-to-use power supply that is ideal for a variety of applications, including LED lighting, industrial control, and telecommunications.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply
Specifications:
| Output power | 35W |
| Input voltage | 165-264VAC or 180-370VDC |
| Output voltage | 5V |
| Output current | 7A |
| Efficiency | up to 86% |
| Noise | <30mV |
| Dimensions | 120 x 60 x 30mm |
| Weight | 0.5kg |
