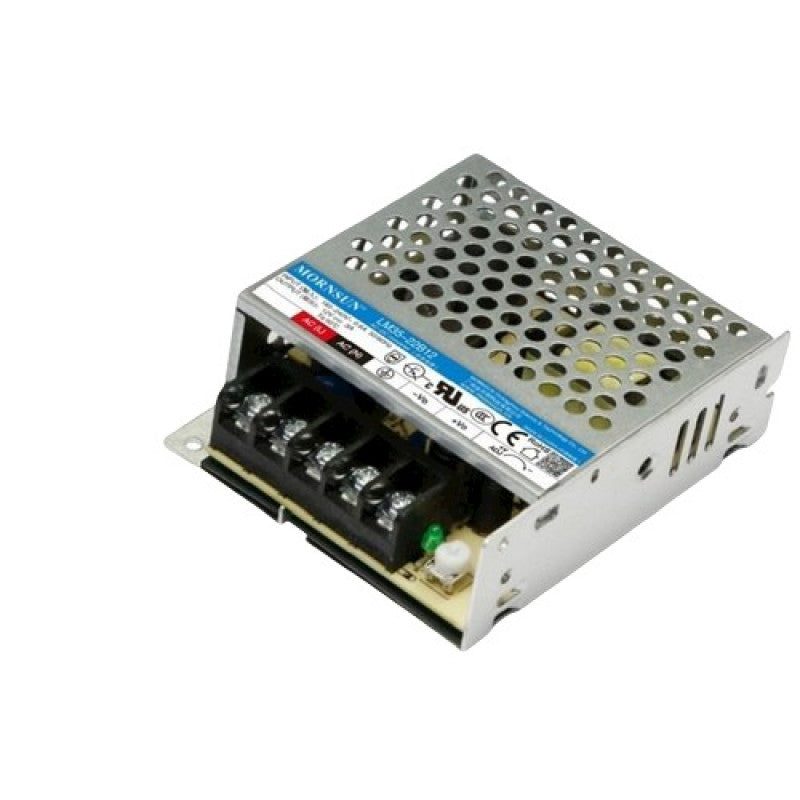

Mornsun LM35-22B12 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-22B12 AC/DC 35W Enclosed Switching Power Supply

Out of stock

Regular price Rs. 1,071
Regular price Rs. 1,463 Sale price Rs. 1,071
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 392 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Input voltage: 165 - 264VAC or 180 - 370VDC
  • Dual-use input: AC or DC
  • Operating temperature: -30℃ to +70℃
  • Standby power consumption: Low
  • Efficiency: High
  • I/O isolation test voltage: Up to 4000VAC
  • Ripple & noise: Low
  • Protection: Output short circuit, over-current, over-voltage
  • Over-voltage class: Ⅲ (designed to meet EN61558)
  • Operating altitude: Up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM35-22B12 AC/DC 35W Enclosed Switching Power Supply

The LM35-22B12 series is a line of enclosed AC-DC switching power supplies from Mornsun. These converters feature AC input and DC input voltage acceptance, cost-effectiveness, low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. They offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558 standards. The LM35-22B12 series is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

Features

    • AC input and DC input voltage acceptance
    • Cost-effectiveness
    • Low no load power consumption
    • High efficiency
    • High reliability
    • Double or reinforced insulation
    • Excellent EMC performance
    • Meets a variety of industry standards
    • Widely used in a variety of applications

    check out : Mornsun LM35-20B12 AC/DC 35W Enclosed Switching Power Supply

    If you are looking for a high-performance, reliable, and versatile AC-DC switching power supply, the LM35-22B12 series from Mornsun is a great option.

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    check out : Mornsun LM35-22B24 AC/DC 35W Enclosed Switching Power Supply

    Package Includes:

    1 x  Mornsun LM35-22B12 AC/DC 35W Enclosed Switching Power Supply

    Specifications:

    Type Enclosed Type Single Output
    Output Power 35W
    Series LM35-22B
    Part Number LM35-22B12
    Mechanical Form Enclosed
    IP Level  Non-Waterproof
    Output Voltage 12V
    Output Current 3A
