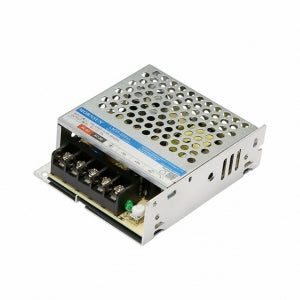

Mornsun LM35-22B15 AC/DC 35W Enclosed Switching Power Supply
Mornsun LM35-22B15 AC/DC 35W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 165 - 264VAC or 180 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM35-22B15 AC/DC 35W Enclosed Switching Power Supply
The LM35-22B15 is an enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 165-264VAC or 180-370VDC, a regulated output voltage of 15V DC, a maximum output current of 2.4A, and an efficiency of up to 89%. The LM35-22B15 is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and thermal overload protection.
Features:
- Universal input voltage: 165-264VAC or 180-370VDC
- Regulated output voltage: 15V DC
- Maximum output current: 2.4A
- Efficiency up to 89%
- Overvoltage protection
- Undervoltage protection
- Overcurrent protection
- Thermal overload protection
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM35-22B15 AC/DC 35W Enclosed Switching Power Supply
Specifications:
| Output power | 35W |
| Input voltage | 165-264VAC or 180-370VDC |
| Output voltage | 15V DC |
| Output current | 2.4A |
| Efficiency | up to 89% |
| Dimensions | 190 x 110 x 45mm |
| Weight | 1.2kg |
