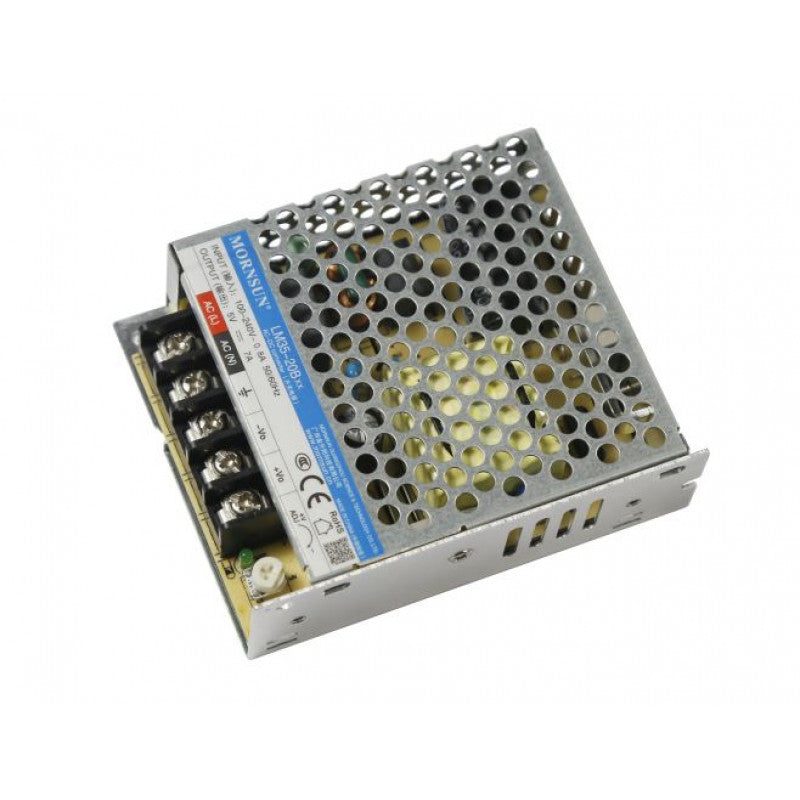

Mornsun LM35-20B15 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-20B15 AC/DC 35W Enclosed Switching Power Supply

Out of stock

Regular price Rs. 1,206
Regular price Rs. 1,648 Sale price Rs. 1,206
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 442 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal input voltage: 85 - 264VAC or 120 - 370VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM35-20B15 AC/DC 35W Enclosed Switching Power Supply

The LM35-20B15 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, accepts DC input voltage, is cost-effective, has low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

    • Universal AC input: The LM35-20B15 can be powered from a wide range of AC input voltages, making it ideal for use in global markets.
    • DC input voltage acceptance: The LM35-20B15 can also be powered from a DC input voltage, making it versatile and adaptable to a variety of applications.
    • Cost-effective: The LM35-20B15 is a cost-effective solution for a variety of applications.
    • Low no load power consumption: The LM35-20B15 consumes very little power when it is not in use, which helps to save energy and extend the life of the unit.
    • High efficiency: The LM35-20B15 is highly efficient, which helps to save energy and reduce operating costs.
    • High reliability: The LM35-20B15 is designed to be reliable and durable, making it a long-lasting investment.
    • Double or reinforced insulation: The LM35-20B15 features double or reinforced insulation, which provides an added layer of safety and protection.
    • Excellent EMC performance: The LM35-20B15 meets a variety of industry standards for EMC performance, making it suitable for use in sensitive electronic equipment.
    • Widely used: The LM35-20B15 is widely used in a variety of industries, making it a versatile and adaptable solution.

    check out : Mornsun LM35-20B05 AC/DC 35W Enclosed Switching Power Supply

    The LM35-20B15 is a versatile and reliable AC-DC switching power supply that is ideal for a wide range of applications. It is cost-effective, efficient, and features a number of safety and performance features that make it a valuable choice for engineers and designers.

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    Package Includes:

    1 x  Mornsun LM35-20B15 AC/DC 35W Enclosed Switching Power Supply

    Specifications:

    Type Enclosed Type Single Output
    Output Power 36W
    Series LM35-20B
    Part Number LM35-20B15
    Mechanical Form Enclosed
    IP Level  Non-Waterproof
    Output Voltage 15V
    Output Current 2.4A
