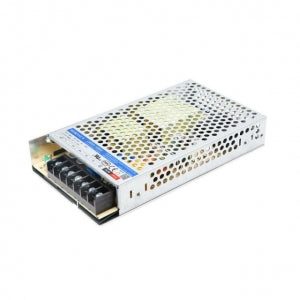

Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply
Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- AC input range: 176 - 264VAC
- DC input range: 240 - 370VDC
- Ultra low standby power consumption: <0.75W at 230VAC
- Operating ambient temperature range: - 30℃to+70℃
- High efficiency, high reliability
- LED indicator for power on
- Output short circuit, over-current, over-voltage, over-temperature protection
- Operating altitude up to 5000m
- Safety according to EN60335, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply
The LM200-12B36 is an enclosed AC-DC switching power supply from Mornsun. It has a universal input voltage of 176-264VAC or 240-373VDC, an output voltage of 36VDC, an output current of 5.9A, and an output power of 200W. It is also equipped with a number of features that make it ideal for a variety of applications, including:
- High efficiency: The LM200-12B36 has an efficiency of up to 89%, which helps to reduce energy costs.
- Low noise: The LM200-12B36 produces very low noise, which makes it ideal for use in sensitive applications.
- Wide temperature range: The LM200-12B36 can operate in temperatures ranging from -30°C to +70°C, making it suitable for use in a variety of environments.
- Durable construction: The LM200-12B36 is built with a durable metal housing that protects it from damage.
The LM200-12B36 is a versatile and reliable power supply that is ideal for a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
check out : Mornsun LM200-10B24 AC/DC 200W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM200-12B05 AC/DC 200W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply
Specifications:
| Input voltage | 176-264VAC or 240-373VDC |
| Output voltage | 36VDC |
| Output current | 5.9A |
| Output power | 200W |
| Efficiency | Up to 89% |
| Noise level | Very low |
| Temperature range | -30°C to +70°C |
