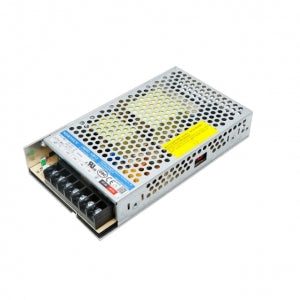

Mornsun LM200-10B24 AC/DC 200W Enclosed Switching Power Supply
The LM200-10B24 is a 211.2W AC/DC enclosed switching power supply with a single output of 24V and 8.8A. It has a universal input voltage of 85-264VAC or 120-370VDC, and a maximum efficiency of 88%. The power supply is protected against output short circuit, over current, over voltage, and over temperature. It is also RoHS compliant.
Features:
- Universal input voltage of 85-264VAC or 120-370VDC
- Single output of 24V and 8.8A
- Maximum efficiency of 88%
- Protected against output short circuit, over current, over voltage, and over temperature
- RoHS compliant
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
