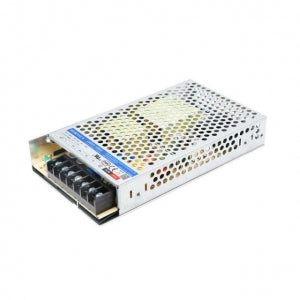

Mornsun LM200-12B05 AC/DC 200W Enclosed Switching Power Supply
The LM200-12B05 is an enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 90-264VAC, 50/60Hz, and can output a constant 12V DC at up to 150W. The power supply is also equipped with short circuit, over voltage, over current, and over temperature protection.
Features:
- Universal input voltage: 90-264VAC, 50/60Hz
- Output voltage: 12V DC
- Output current: 150W
- Short circuit protection
- Over voltage protection
- Over current protection
- Over temperature protection
check out : Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
