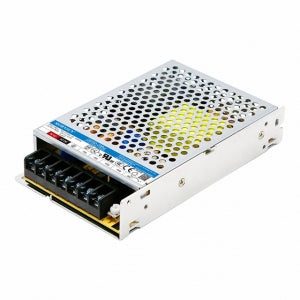

Mornsun LM150-23B48 AC/DC 150W Enclosed Switching Power Supply
The LM150-23B48 is a high-performance, enclosed AC/DC converter from Mornsun. It is designed for a wide input voltage range of 85 to 305 VAC or 120 to 430 VDC, and can output up to 150 watts at 48 volts. The LM150-23B48 features a high efficiency of up to 89%, and a ripple rejection of up to 80dB. It is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection.
Features:
- High efficiency of up to 89%
- Ripple rejection of up to 80dB
- Wide input voltage range of 85 to 305 VAC or 120 to 430 VDC
- Output voltage of 48 volts
- Output current of 3.33 amps
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
