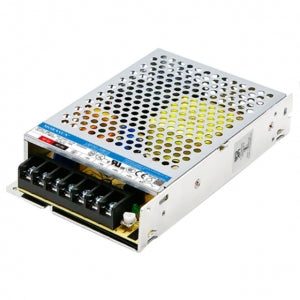

Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply
Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 165 - 264VAC or 180 - 370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply
The LM150-22B15 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 165-264VAC and 180-370VDC. The power rating of the supply is 150W, and it has an output voltage of 15VDC. With a high efficiency of 87% and 4000VAC isolation, the LM150-22B15 is designed to provide reliable power in industrial applications. It is a cost-effective solution with a narrow input range and offers excellent performance.
Features
- Power rating: 150W
- Input voltage range: 165-264VAC, 180-370VDC
- Output voltage: 15VDC
- Output current: 10A
- Efficiency: 87%
- Isolation: 4000VAC
check out : Mornsun LM150-22B12 AC/DC 150W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply
Specifications:
| Power (W) | 150 |
| Vin (VAC) | 165-264 |
| Vin (VDC) | 180-370 |
| Vout (VDC) | 15 |
| Iout | 10A |
| Efficiency (%) | 87 |
| Isolation | 4000VAC |
