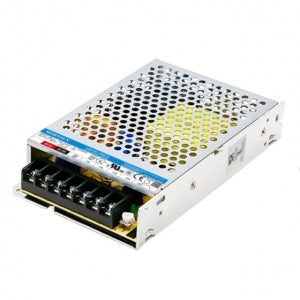

Mornsun LM150-20B15 AC/DC 150W Enclosed Switching Power Supply
The LM150-20B15 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 85-264 VAC and 120-370 VDC. The output voltage is fixed at 15 VDC, and it can deliver a maximum current of 10A. This power supply offers high efficiency of 87% and provides isolation up to 4000VAC. It is designed to meet the power requirements in various industrial applications.
Features
- Power(W): 150
- Input Voltage Range (VAC): 85-264
- Input Voltage Range (VDC): 120-370
- Output Voltage (VDC): 15
- Output Current: 10A
- Efficiency (%): 87
- Isolation: 4000VAC
check out : Mornsun LM150-22B24 AC/DC 150W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
