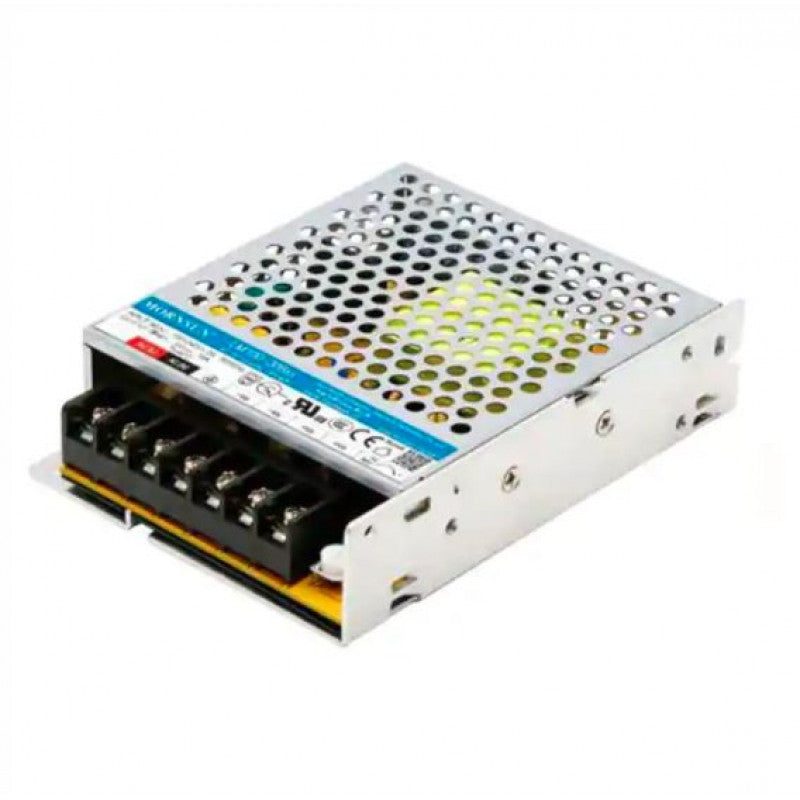

Mornsun LM15-23B12 AC/DC 15W Enclosed SMPS
Mornsun LM15-23B12 AC/DC 15W Enclosed SMPS
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Input voltage range: 85 - 305VAC or 100 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Up to 83% efficiency
- No-load power consumption < 0.5W
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM15-23B12 AC/DC 15W Enclosed SMPS
The LM15-23B12 series is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85 to 305 VAC or 100 to 430 VDC, and can accept DC input voltage. The LM15-23B12 is cost-effective, has low no-load power consumption, high efficiency, and high reliability. It offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards. The LM15-23B12 is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features
- Universal AC input of 85 to 305 VAC or 100 to 430 VDC
- Accepts DC input voltage
- Cost-effective
- Low no-load power consumption
- High efficiency
- High reliability
- Excellent EMC performance
- Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards
- Widely used in a variety of applications
If you are looking for a reliable and versatile AC-DC switching power supply, the LM15-23B12 is a great option. It offers a wide range of features and is suitable for a variety of applications.
check out : Mornsun LM15-23B05 AC/DC 15W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM15-23B03 AC/DC 15W Enclosed SMPS
Package Includes:
1 x Mornsun LM15-23B12 AC/DC 15W Enclosed SMPS
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 15W |
| Series |
LM15-23B |
| Part Number |
LM15-23B12 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 12V |
| Output Current | 1.3A |
