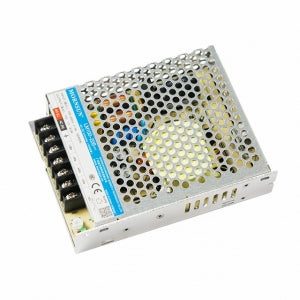

Mornsun LM100-22B36 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-22B36 AC/DC 100W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 165-264VAC or 200-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption and high efficiency
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-22B36 AC/DC 100W Enclosed Switching Power Supply
The LM100-22B36 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 264VAC. It has a power rating of 100.8W and is suitable for various industrial applications. The power supply offers high efficiency and is designed to provide a reliable and stable output voltage of 36VDC with a current output of 2.8A. It also features a 4000VAC isolation for enhanced safety.
Features
- Power: 100.8W
- Input Voltage (AC): 165-264V
- Input Voltage (DC): 200-370V
- Output Voltage: 36VDC
- Output Current: 2.8A
- Efficiency: 90%
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM100-22B36 AC/DC 100W Enclosed Switching Power Supply
Specifications:
| Power (W) | 100.8 |
| Input Voltage (AC) (V) | 165-264 |
| Input Voltage (DC) (V) | 200-370 |
| Output Voltage (V) | 36 |
| Output Current (A) | 2.8 |
| Efficiency (%) | 90 |
| Isolation (VAC) | 4000 |
