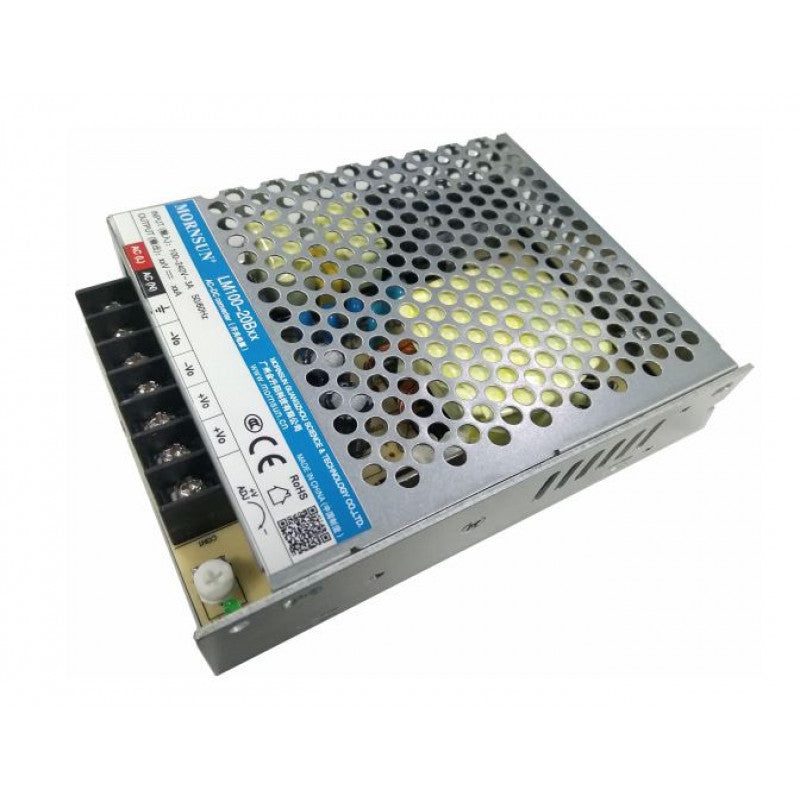

Mornsun LM100-20B15 AC/DC 100W Enclosed Switching Power Supply
The LM100-20B15 is a cost-effective, enclosed AC-DC switching power supply from Mornsun. It features universal AC input and DC input voltage acceptance, low no-load power consumption, high efficiency, and high reliability. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032/IEC/UL/EN62368, EN60335, GB4943 standards. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features:
- Universal AC input: The LM100-20B15 can be powered by AC input voltages ranging from 85 to 264 VAC.
- DC input voltage acceptance: The LM100-20B15 can also be powered by DC input voltages ranging from 120 to 373 VDC.
- Low no-load power consumption: The LM100-20B15 consumes less than 1 watt of power when it is not in use.
- High efficiency: The LM100-20B15 has an efficiency of up to 87.5%, which means that it converts more than 87.5% of the input power into output power.
- High reliability: The LM100-20B15 is designed to be reliable and long-lasting. It is protected against over-voltage, over-current, and short-circuit conditions.
- Excellent EMC performance: The LM100-20B15 meets the requirements of a variety of EMC standards, which means that it is less likely to interfere with other electronic devices.
The LM100-20B15 is a versatile and reliable AC-DC switching power supply that can be used in a variety of applications. It is a cost-effective choice for businesses and individuals who need a reliable and efficient power supply.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
