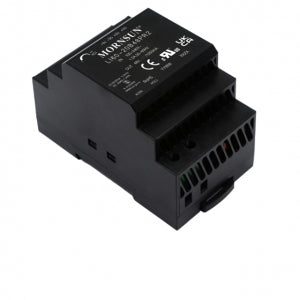

Mornsun LI60-20B48PR2 AC/DC 60W DIN-Rail Power Supply
Mornsun LI60-20B48PR2 AC/DC 60W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85-264VAC or 120-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -40℃ to +70℃
- High I/O isolation test voltage up to 4000VAC
- Industrial-grade design
- OVC III (EN61558-1 standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Withstand 300VAC surge input for 5s
- DIN rail TS35X7.5/ TS35X15 mountable
- Safety according to EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI60-20B48PR2 AC/DC 60W DIN-Rail Power Supply
The LI60-20B48PR2 is a 60W AC/DC power supply that outputs 48V at 1.25A. It has a wide input voltage range of 85-264VAC or 120-370VDC, making it suitable for use in a variety of applications. The power supply is also isolated from the input voltage, providing protection against electrical shock. The LI60-20B48PR2 is housed in a durable plastic case and is designed for easy installation on a DIN rail.
Features:
- 60W output power
- 48V output voltage
- 1.25A output current
- Wide input voltage range: 85-264VAC or 120-370VDC
- Isolated from input voltage
- Durable plastic case
- DIN rail mounting
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI60-20B48PR2 AC/DC 60W DIN-Rail Power Supply
Specifications
| Output power | 60W |
| Output voltage | 48V |
| Output current | 1.25A |
| Input voltage range | 85-264VAC or 120-370VDC |
| Isolation voltage | 4000VAC |
| Dimensions | 100 x 22 x 48mm |
| Weight | 0.4kg |
