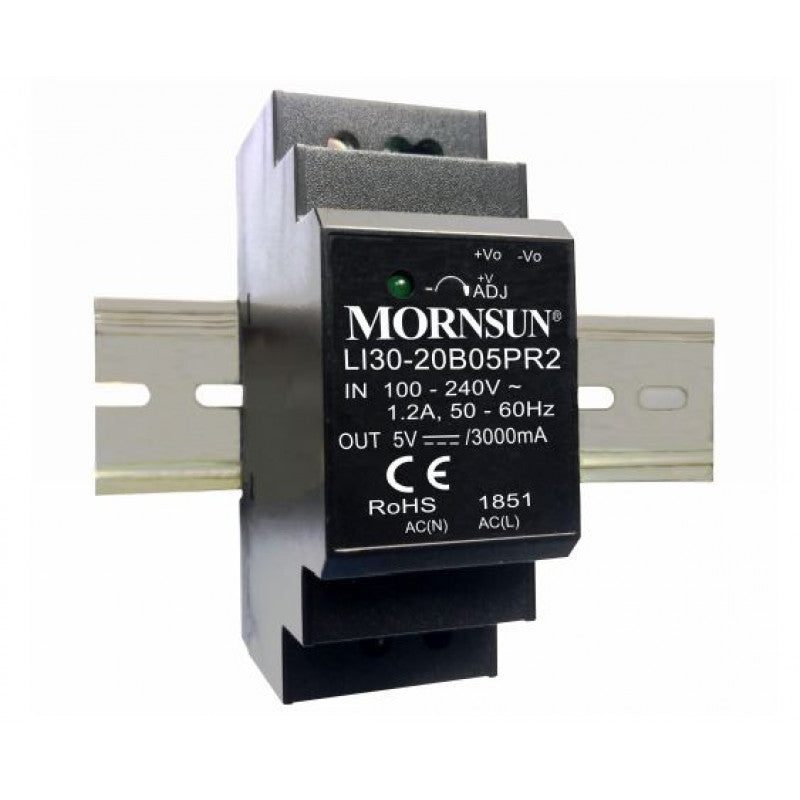

Mornsun LI30-20B05PR2 AC/DC 30W DIN-Rail Power Supply
Mornsun LI30-20B05PR2 AC/DC 30W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 85-264VAC or 120-370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range -40℃ to +70℃
- High I/O isolation voltage up to 4000VAC
- Industrial-grade design
- OVC III (EN61558-1 standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Withstand 300VAC surge input for 5s
- DIN rail TS35X7.5/ TS35X15 mountable
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI30-20B05PR2 AC/DC 30W DIN-Rail Power Supply
The LI30-20B05PR2 is a cost-effective and energy efficient AC-DC converter from Mornsun. It is compliant with international IEC62368 standards for EMC and safety, and meets IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. The converter is lightweight and has an extremely compact design, making it ideal for space-saving applications. It is also ideal for harsh environments, such as industrial control equipment machinery.
check out : Mornsun LI60-20B24PR2 AC/DC 60W DIN-Rail Power Supply
Here are some of the key features of the LI30-20B05PR2:
- Cost-effective
- Energy efficient
- Standard DIN-rail mounting
- High level of stability and immunity to noise
- Compliant with international EMC and safety standards
- Lightweight and compact design
- Ideal for space-saving applications
- Ideal for harsh environments
If you are looking for a cost-effective, energy efficient, and reliable AC-DC converter, the LI30-20B05PR2 is a great option. It is ideal for a variety of applications, including industrial control equipment machinery and harsh environments.
check out : Mornsun LI30-20B24PR2 AC/DC 30W DIN-Rail Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI30-20B05PR2 AC/DC 30W DIN-Rail Power Supply
Specifications:
| Type | DIN Rail Single Output |
| Output Power | 15W |
| Series | LI30-20B |
| Part Number | LI30-20B05PR2 |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 5V |
| Output Current | 3A |
