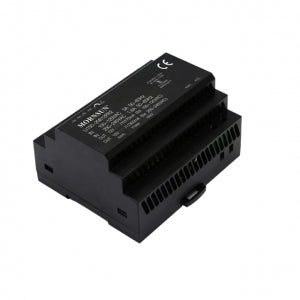

Mornsun LI150-20B48PR2 AC/DC 150W DIN-Rail Power Supply
Mornsun LI150-20B48PR2 AC/DC 150W DIN-Rail Power Supply
Out of stock
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 85-264VAC (277VAC available) or 120-370VDC (390VDC available)
- Withstand 300VAC surge input for 5s
- Operating ambient temperature range: -30℃to+70℃ (can be start-up at -40℃)
- High I/O isolation test voltage up to 4000VAC (Input -output)
- Over-voltage class III (Designed to meet EN61558 standards)
- Low standby power consumption, low ripple & noise
- High efficiency, high reliability
- Output short circuit, over-current, over-voltage, over-temperature protection
- DIN rail TS35X7.5/ TS35X15 mountable
- Ultra-thin design: width 105mm (6SU)
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI150-20B48PR2 AC/DC 150W DIN-Rail Power Supply
The LI150-20B48PR2 is a cost-effective, energy efficient AC/DC converter that is compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN61000-4, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, UL61010. It is ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
Features:
- Universal input voltage: 85-264VAC or 120-370VDC
- Output voltage: 48VDC
- Output current: 3.2A
- Power: 150W
- PFC function for power factor correction
- Compact and lightweight design
- DIN-rail mounting
- High level of stability and immunity to noise
- Compliant with international standards for EMC and safety
check out : Mornsun LI100-20B15PR2 AC/DC 100W DIN-Rail Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LI100-20B12PR2 AC/DC 100W DIN-Rail Power Supply
Also check the Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply. It is a 15V, 9.5A, 150W AC/DC converter designed for standard DIN-rail mounting. The power supply has a universal input voltage range of 85-264VAC or 120-370VDC and features a PFC function for power factor correction.
Package Includes:
1 x Mornsun LI150-20B48PR2 AC/DC 150W DIN-Rail Power Supply
Specifications:
Output voltage | 48VDC |
Output current | 3.2A |
Power | 150W |
Dimensions | 120 x 60 x 40mm |
Weight | 0.5kg |
