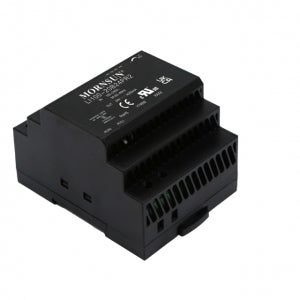

Mornsun LI100-20B15PR2 AC/DC 100W DIN-Rail Power Supply

Mornsun LI100-20B15PR2 AC/DC 100W DIN-Rail Power Supply

Out of stock

Regular price Rs. 2,902
Regular price Rs. 3,965 Sale price Rs. 2,902
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 1,063 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 200/- OFF RC200

When you shop for ₹ 5000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal 85-264VAC or 120-370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • High I/O isolation voltage up to 4000VAC
  • Industrial-grade design
  • OVC III (EN61558-1 standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Withstand 300VAC surge input for 5s
  • DIN rail TS35X7.5/ TS35X15 mountable
  • Safety according to EN61558

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LI100-20B15PR2 AC/DC 100W DIN-Rail Power Supply

The LI100-20B15PR2 is a cost-effective, energy efficient AC/DC converter from Mornsun. It is compliant with international IEC62368 standards for EMC and is safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. The LI100-20B15PR2 has a high level of stability and immunity to noise, and is ideal for applications such as industrial control equipment, machinery, and all kinds of applications in a harsh environment.

Features:

  • Cost-effective
  • Energy efficient
  • Compliant with international IEC62368 standards for EMC
  • Safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368
  • High level of stability and immunity to noise
  • Ideal for applications such as industrial control equipment, machinery, and all kinds of applications in a harsh environment

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LI100-20B15PR2 AC/DC 100W DIN-Rail Power Supply

Specifications:

Specification Value
Power 97.5W
Input voltage 85-264VAC or 120-370VDC
Output voltage 15VDC
Output current 6.5A
Isolation 4000VAC
Dimensions 220 x 90 x 45mm
Weight 0.8kg
