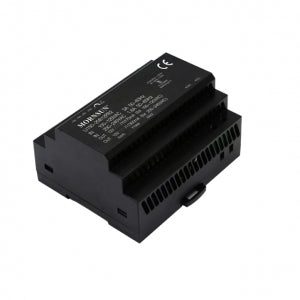

Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply
Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 85-264VAC (277VAC available) or 120-370VDC (390VDC available) input voltage
- Withstand 300VAC surge input for 5s
- Operating ambient temperature range: -30℃ to +70℃ (can be start-up at -40℃)
- High I/O isolation test voltage up to 4000VAC (Input - output)
- Over-voltage class III (Designed to meet EN61558 standards)
- Low standby power consumption, low ripple & noise
- High efficiency, high reliability
- Output short circuit, over-current, over-voltage, over-temperature protection
- DIN rail TS35X7.5/ TS35X15 mountable
- Ultra-thin design: width 105mm (6SU)
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply
The LI150-20B15PR2 is a 15V, 9.5A, 150W AC/DC converter from Mornsun. It is a cost-effective, energy efficient solution for standard DIN-rail mounting. The product offers a high level of stability and immunity to noise, and is compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN61000-4, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, UL61010. It is a light weight AC-DC converter with an extremely compact design for space saving. It is ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
Features:
- 15V, 9.5A, 150W output
- Universal input voltage of 85-264VAC / 120-370VDC
- PFC function for power factor correction
- High efficiency up to 95%
- Low ripple and noise
- Compact and lightweight design
- DIN-rail mounting
- CE, FCC, RoHS compliant
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply
Specifications:
| Input voltage | 85-264VAC / 120-370VDC |
| Output voltage | 15V |
| Output current | 9.5A |
| Output power | 150W |
| Efficiency | up to 95% |
| Ripple and noise | <1% |
| Dimensions | 220 x 100 x 45mm |
| Weight | 0.7kg |
