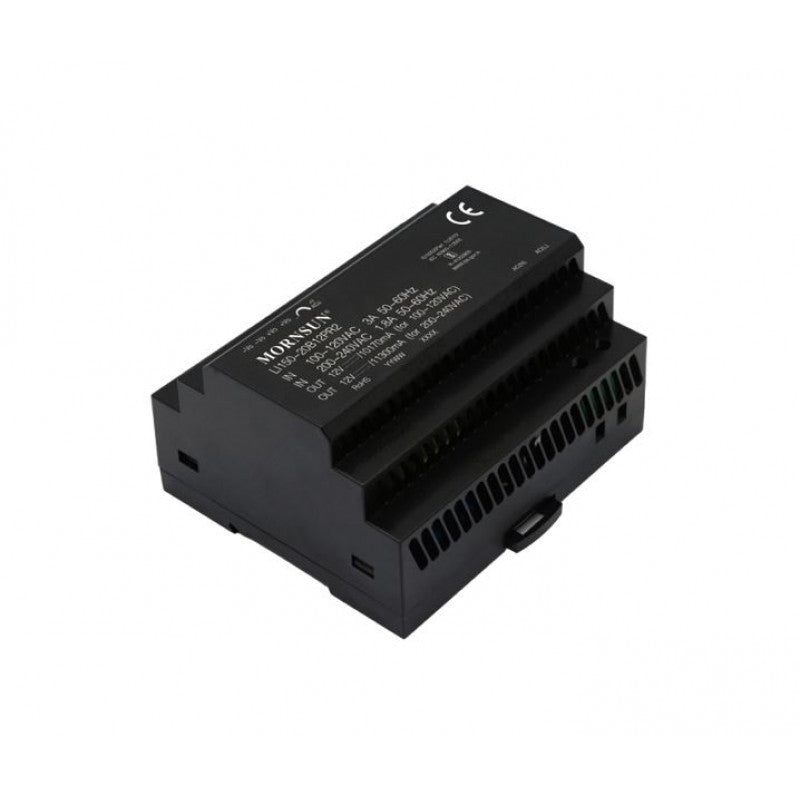

Mornsun LI150-20B24PR2 AC/DC 150W DIN-Rail Power Supply
Mornsun LI150-20B24PR2 AC/DC 150W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 85-264VAC (277VAC available) or 120-370VDC (390VDC available)
- Withstand 300VAC surge input for 5s
- Operating ambient temperature range: -30℃ to +70℃ (can be start-up at -40℃)
- High I/O isolation test voltage up to 4000VAC (Input -output)
- Over-voltage class III (Designed to meet EN61558 standards)
- Low standby power consumption, low ripple & noise
- High efficiency, high reliability
- Output short circuit, over-current, over-voltage, over-temperature protection
- DIN rail TS35X7.5/ TS35X15 mountable
- Ultra-thin design: width 105mm (6SU)
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI150-20B24PR2 AC/DC 150W DIN-Rail Power Supply
The LI150-20B24PR2 is a cost-effective, energy efficient AC-DC converter from Mornsun. It is compliant with international standards for EMC and safety, and is ideal for a variety of applications, including industrial control equipment and machinery. The converter is lightweight and compact, making it ideal for space-saving applications. It is also designed to withstand harsh environments.
Features
- Cost-effective and energy efficient
- Compliant with international standards for EMC and safety
- Lightweight and compact
- Ideal for a variety of applications, including industrial control equipment and machinery
- Designed to withstand harsh environments
If you are looking for a cost-effective, energy efficient, and reliable AC-DC converter, the LI150-20B24PR2 is a great option. It is ideal for a variety of applications, and is designed to withstand harsh environments.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI150-20B24PR2 AC/DC 150W DIN-Rail Power Supply
Specifications
| Type | DIN Rail Single Output |
| Output Power | 150W |
| Series | LI150-20B |
| Part Number | LI150-20B24PR2 |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 24V |
| Output Current | 6.25A |
