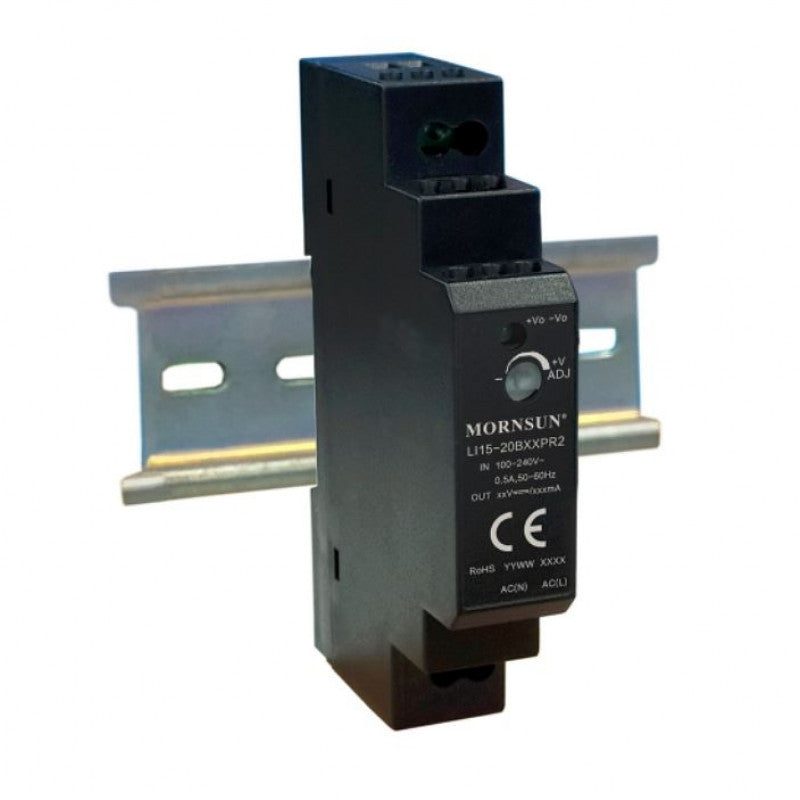

Mornsun LI15-20B12PR2 AC/DC 15W DIN-Rail Power Supply

Rs. 1,362
Rs. 1,860
Rs. 1,362
Save Rs. 498
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

SKU: DTIFPS0240
  • Universal 85-264VAC (277VAC available) or 120-370VDC (390VDC available) input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range -40℃ to +70℃
  • High I/O isolation voltage up to 4000VAC
  • Industrial-grade design
  • OVC III (EN61558-1 standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • DIN rail TS35X7.5/ TS35X15 mountable
  • Safety according to UL/IEC62368, IEC/EN61010, IEC60335, IEC/EN61558

This product is not available for store pickup. Apologies for the inconvenience caused

BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
Mornsun LI15-20B12PR2 AC/DC 15W DIN-Rail Power Supply
Mornsun LI15-20B12PR2 AC/DC 15W DIN-Rail Power Supply
Rs. 1,860 Rs. 1,362
Mornsun LI15-20B12PR2 AC/DC 15W DIN-Rail Power Supply

Mornsun LI15-20B12PR2 AC/DC 15W DIN-Rail Power Supply

Rs. 1,860 Rs. 1,362
Description

Mornsun LI15-20B12PR2 AC/DC 15W DIN-Rail Power Supply

The LI15-20B12PR2 is a cost-effective, energy efficient AC-DC converter from Mornsun. It is compliant with international IEC62368 standards for EMC and safety, and meets IEC/EN61000-4, CISPR32/EN55032, UL62368, EN62368, IEC62368, IEC/EN61010, IEC/EN61558 and IEC60335. The converter is lightweight and has an extremely compact design, making it ideal for space-saving applications. It is also ideal for harsh environments, such as industrial control equipment machinery.

Here are some of the key features of the LI15-20B12PR2:

  • Cost-effective
  • Energy efficient
  • Standard DIN-rail mounting
  • High level of stability and immunity to noise
  • Compliant with international EMC and safety standards
  • Lightweight and compact design
  • Ideal for space-saving applications
  • Ideal for harsh environments

If you are looking for a cost-effective, energy efficient, and reliable AC-DC converter, the LI15-20B12PR2 is a great option. It is ideal for a variety of applications, including industrial control equipment machinery and harsh environments.

check out : Mornsun LI15-20B24PR2 AC/DC 15W DIN-Rail Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Specifications

Package Includes:

1 x Mornsun LI15-20B12PR2 AC/DC 15W DIN-Rail Power Supply

Specifications:

Type DIN Rail Single Output
Output Power 15W
Series LI15-20B
Part Number LI15-20B12PR2
Mount DIN-Rail
IP Level  Non-Waterproof
Output Voltage 12V
Output Current 1.25A
