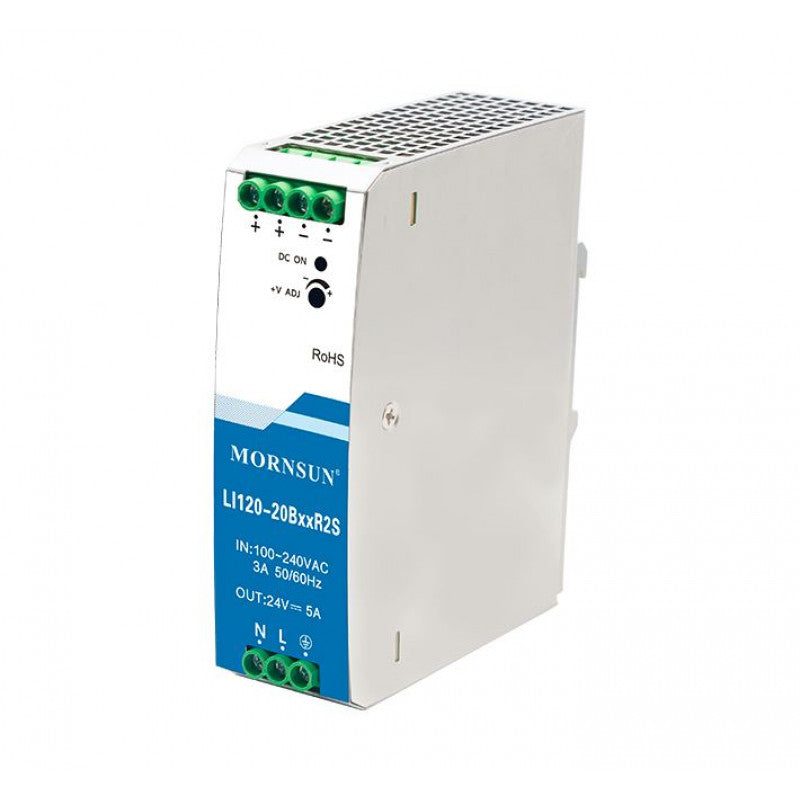

Mornsun LI120-20B48R2S AC/DC 120W DIN-Rail Power Supply
Mornsun LI120-20B48R2S AC/DC 120W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 90 - 264VAC or 127 - 370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -20℃ to +60℃
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection
- DIN rail TS-35/7.5 or 15 mountable
- Ultra slim design: suitable for small chassis and narrow space installation
- Safety according to UL508
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI120-20B48R2S AC/DC 120W DIN-Rail Power Supply
The LI120-20B48R2S is a cost-effective, energy-efficient, green AC-DC converter from Mornsun. It is designed for standard DIN-rail mounting and offers a high level of stability and immunity to noise. The converter is ideal for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. It is also lightweight and has an extremely compact design, making it ideal for space-saving applications. The LI120-20B48R2S meets international EMC and safety standards, including UL61010, UL508, and EN/BS EN 62368.
Features
- Cost-effective
- Energy-efficient
- Green
- Standard DIN-rail mounting
- High level of stability and immunity to noise
- Lightweight
- Extremely compact design
- Meets international EMC and safety standards
The LI120-20B48R2S is a versatile and reliable AC-DC converter that is ideal for a wide range of applications. If you are looking for a cost-effective, energy-efficient, and green solution for your industrial control equipment, machinery, or other industrial equipment, the LI120-20B48R2S is a great option.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI120-20B48R2S AC/DC 120W DIN-Rail Power Supply
Specifications:
| Type | DIN Rail Single Output |
| Output Power | 120W |
| Series | LI120-20B |
| Part Number | LI120-20B48R2S |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 48V |
| Output Current | 2.5A |
